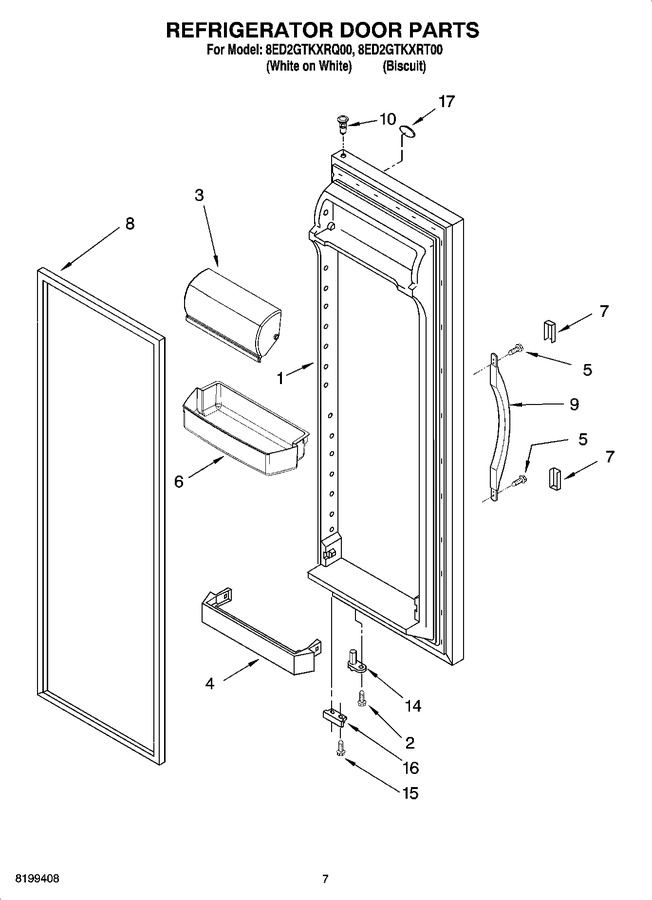

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2206826T		Refrigerator Door (includes Item 8) (biscuit)   (Replaces: 2206826T)		Appelez-nous	-
1	2206826W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2177962K		Trivet, Shelf   (Replaces: 2177962)				$ 81.09
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	WP2187172		Door Bin (3)   (Replaces: 2187172K)			Immediately	$ 45.09
7	WP2193353W		Trim, Handle (white)   (Replaces: 2193353W)				$ 8.11
7	2193353T		Trim, Handle (biscuit)		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 317.32
9	2186649W		Handle, Center (white)				$ 70.49
9	2186649T		Handle, Center (biscuit)		Appelez-nous	-
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 40.03
17	2205769		Nameplate (biscuit)		Appelez-nous	-
17	2175383		Nameplate (white)		Appelez-nous	-
