SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

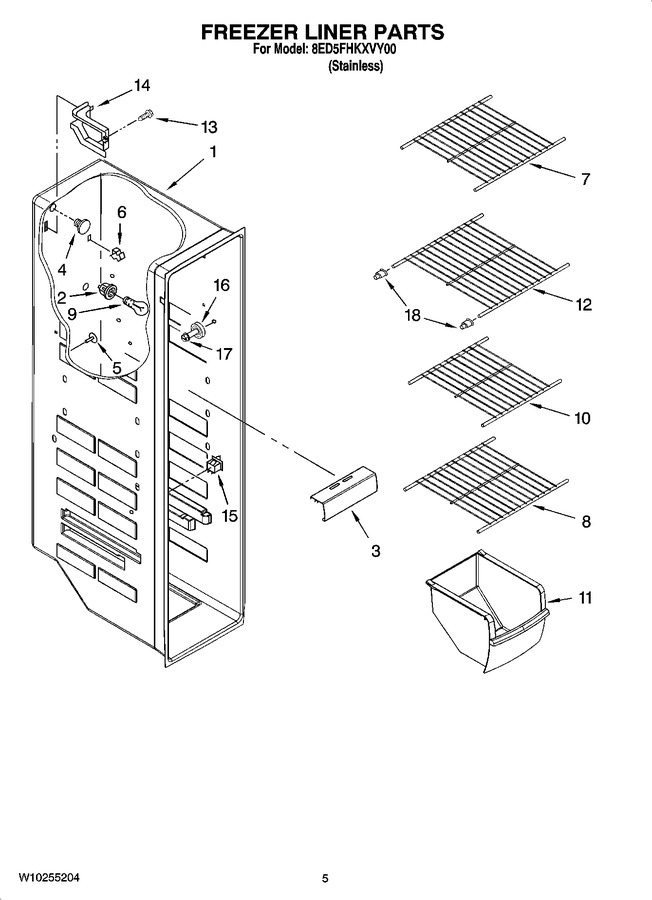

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Air Flow Parts
05 - Air Flow Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Unit Parts
08 - Unit Parts

Diagram for 09 - Control Parts, Optional Parts (not Included)
09 - Control Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WPW10119935 Socket, Light   (Replaces: 2155597) Special Order $ 95.54

3 2198479 Light Lens Appelez-nous -
4 2223173 Plug, Fill Tube Special Order $ 8.32

5 WP941839 Hole, Plug   (Replaces: 941839) Special Order $ 7.23

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 9.85

7 W10318945 Shelf, Wire   (Replaces: 2309521) Special Order $ 92.88

8 2309522 Shelf, Wire Appelez-nous -
9 W11679940 Light Bulb   (Replaces: W10194422) In-Stock Immediately $ 10.17

10 WPW10318947 Shelf, Wire   (Replaces: 2309596) Special Order $ 82.63

11 W11577967 Freezer Bin   (Replaces: 2309757) Special Order $ 86.67

12 WPW10318948 Shelf, Wire   (Replaces: 2309597) Special Order $ 139.71

13 WP489478 Screw   (Replaces: 489478) Special Order $ 7.36

14 2160912 Wiring Cover Appelez-nous -
15 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 35.18

16 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 9.78

17 WP3400806 Screw   (Replaces: 8281158) Special Order $ 7.29

18 WPW10130299 Shelf Cup   (Replaces: W10130299) In-Stock Immediately $ 13.23


    View Diagram in Separate Window     Print Icon   Print Part List
