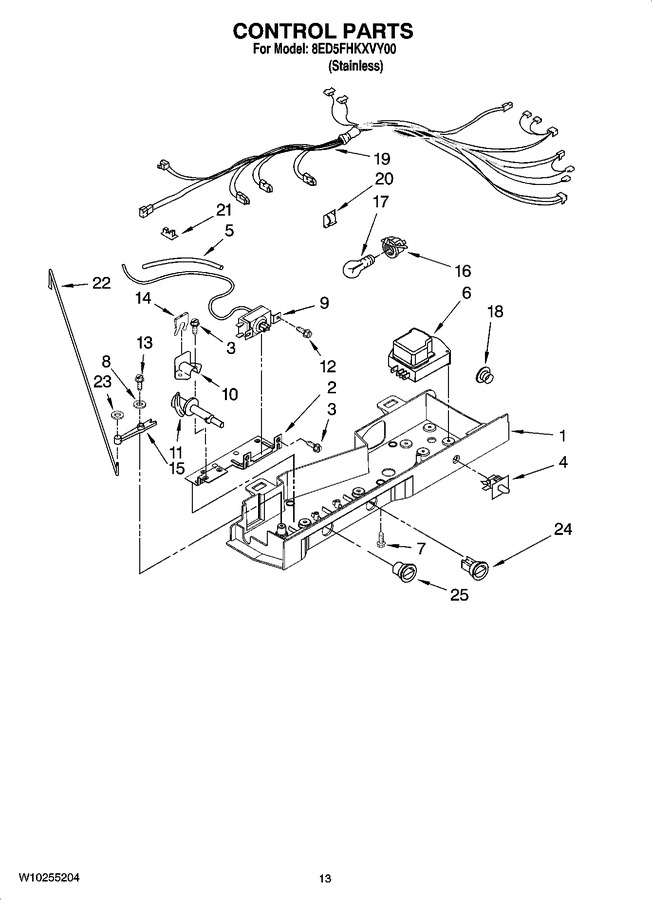

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10167079 | Control Box |
|
- | |||||
| 2 | 2311611 | Mounting Bracket |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | WP2149705 | Light Switch (Replaces: 2149705) |
|
Immediately | $ 41.09 | ||||
| 5 | WP2196003 | Tube Barrier (Replaces: 2196001) |
|
$ 7.52 | |||||
| 6 | W10822278 | Defrost Timer (Replaces: 2188375) |
|
Immediately | $ 31.00 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 12.62 | |||||
| 8 | 489203 | Spring Washer |
|
- | |||||
| 9 | WP2198202 | Thermostat (rc) (Replaces: 2198202) |
|
Immediately | $ 82.75 | ||||
| 10 | 1110560 | Bearing Body |
|
$ 10.17 | |||||
| 11 | WP2182195 | Cam Assembly (Replaces: 2182195) |
|
$ 5.13 | |||||
| 12 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 10.68 | ||||
| 13 | 627068 | Screw |
|
$ 11.46 | |||||
| 14 | WP2196062 | Damper Control (Replaces: 2196062) |
|
$ 10.13 | |||||
| 15 | 1110559 | Pivot Arm |
|
$ 8.35 | |||||
| 16 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 17 | W11679940 | Light Bulb (Replaces: W10194422) |
|
Immediately | $ 10.17 | ||||
| 18 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 19 | 2311636 | Control Box Harness |
|
- | |||||
| 20 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.33 | |||||
| 21 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 22 | 2311631 | Connecting Rod |
|
- | |||||
| 23 | 489285 | Fastener, Push-on |
|
- | |||||
| 24 | W10723843 | Thermostat Knob (Replaces: 2311614) |
|
$ 25.13 | |||||
| 25 | 2311615 | Control Knob |
|
$ 47.03 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.62 | ||||||
| 2217192 | Cleaner, (stainless Steel) |
|
- | ||||||
| WPW10190943 | Icemaker (Replaces: W10190943) |
|
$ 357.34 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 84.73 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 799344 | Paint, Bulk (1qt.) (white) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 |
