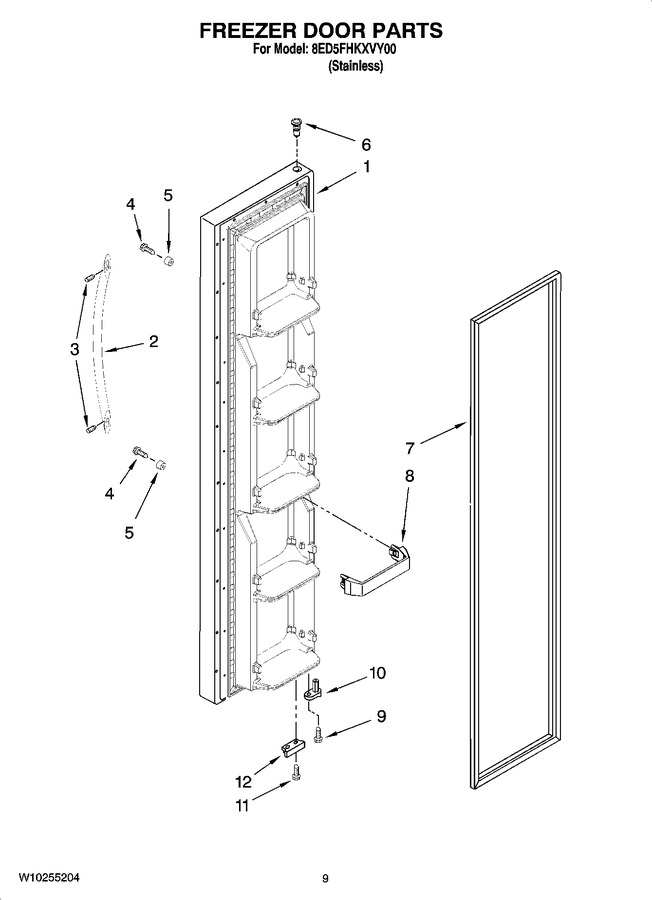

07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203193		Freezer Door (includes Item 7) (stainless)		Appelez-nous	-
2	2254608S		Handle		Appelez-nous	-
3	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 16.59
4	WP488163		Screw   (Replaces: 488208)				$ 7.13
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.69
6	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.34
7	W10136735		Door Gasket, Magnetic (service)   (Replaces: 2327164)				$ 283.96
8	WP2171157		Trivet   (Replaces: 2171157)				$ 57.33
9	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
11	WP489483		Screw   (Replaces: 489420)				$ 10.27
12	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 38.51
