View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel

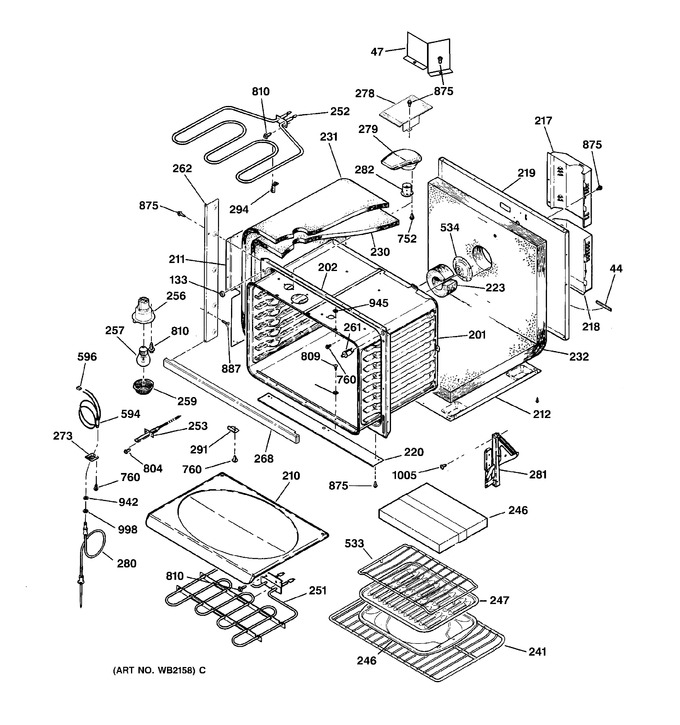

2 - Body Parts
3 - Door
4 - Door Lock
5 - Fan Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 44 | WB2K5225 | Grommet Strip (.020) |
|
- | |||||
| 47 | WB39T10002 | Air Deflector |
|
- | |||||
| 133 | WB01T10026 | Door Pad |
|
- | |||||
| 133 | WG02F03972 | Bumper Door (Replaces: WB01T10022) |
|
$ 6.35 | |||||
| 201 | WB63T10033 | Wrapper Ovn Cav Asm |
|
- | |||||
| 202 | WB63T10058 | Front Frame |
|
- | |||||
| 210 | WB63T10034 | Bottom False Asm |
|
- | |||||
| 211 | WB2K5306 | Side Insulation Retainer |
|
- | |||||
| 212 | WB2K5305 | Bttm Insulation Retainer |
|
- | |||||
| 217 | WB34K5193 | Cover Wire Upr Rr |
|
- | |||||
| 218 | WB34K5192 | Cover Wire Lwr Rr |
|
- | |||||
| 219 | WB2K5307 | Back Insulation Retainer |
|
- | |||||
| 220 | WB34K5195 | Shield Btm Trim |
|
- | |||||
| 223 | WB35K5117 | Insulation Ovn Supt |
|
- | |||||
| 230 | WB35K5118 | Insulation Top/sds (inr) |
|
- | |||||
| 231 | WB35K5119 | Insulation Top/sds (out) |
|
- | |||||
| 232 | WB35K5116 | Insulation Back & Btm |
|
- | |||||
| 241 | WB48K5022 | Oven Rack-convx |
|
- | |||||
| 241 | WB48T10009 | Rack Ovn |
|
- | |||||
| 246 | WB48T10006 | Pan Broil (261d656p010) |
|
- | |||||
| 246 | WB48T10010 | Stone Baking Asm |
|
- | |||||
| 247 | WB48T10005 | Grid Bro Pan |
|
- | |||||
| 251 | WB44T10006 | Element Bake (3400w) |
|
- | |||||
| 252 | WB44K5017 | Broil Element |
|
- | |||||
| 253 | WS01F02431 | Sensor-oven (Replaces: WB23X5340) |
|
Immediately | $ 30.20 | ||||
| 256 | WG02F01227 | Oven Lamp Holder (Replaces: WB08T10002) |
|
$ 63.60 | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 259 | WG02F05612 | Oven Bulb Lens (Replaces: WB25T10002) |
|
Immediately | $ 28.59 | ||||
| 261 | 318394803 | Oven Door Light Switch (Replaces: WB24K5031) |
|
Immediately | $ 49.14 | ||||
| 262 | WB7K5307 | Vertical Side Trim-blk |
|
- | |||||
| 268 | WB07T10037 | Trim Btm (blk) |
|
- | |||||
| 273 | WB34K5140 | Pr0be Cover |
|
- | |||||
| 279 | WB38T10015 | Vent Box Asm |
|
- | |||||
| 280 | WB20X5050 | Probe |
|
- | |||||
| 281 | WB14T10005 | Hinge Asm Rt |
|
- | |||||
| 281 | WG02F02082 | Hinge Asm Lt (Replaces: WB14T10006) |
|
$ 136.71 | |||||
| 282 | WB28K5010 | Vent Tube |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Element Bro Support (Replaces: WB2X9719) |
|
$ 11.71 | |||||
| 533 | WB48X5108 | Roast Rack |
|
- | |||||
| 534 | WB26T10003 | Support Ovn Cavity |
|
- | |||||
| 594 | WB8K5053 | Jack Receptacle |
|
- | |||||
| 596 | WB8K5013 | Housing Asm Receptacle |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 887 | WG02A00783 | Trim Screw-blk (Replaces: WB1K5173) |
|
$ 3.97 | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lockwasher |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 | |||||
| 1005 | WS01A01018 | Scr 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.97 |
