SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock


5 - Fan Assembly

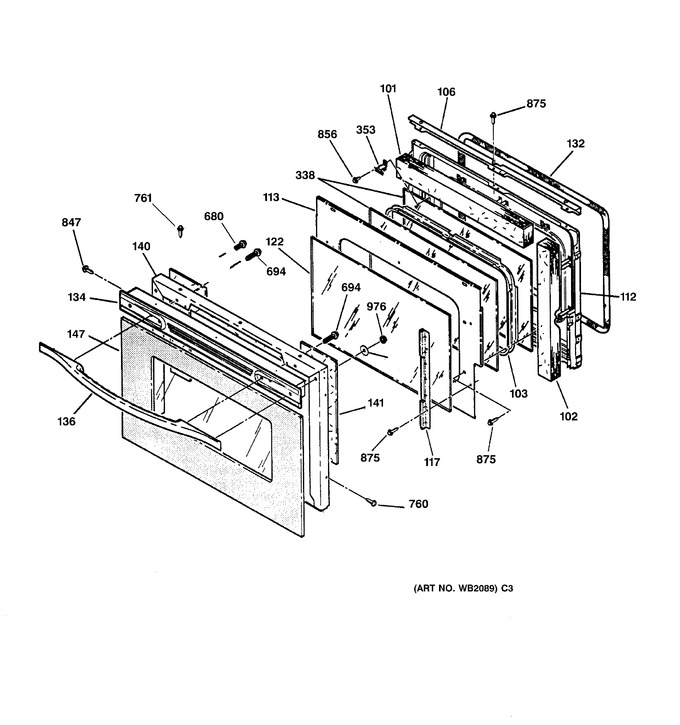

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35K5097		Oven Door Insulation-top		Appelez-nous	-
103	WB2K5321		Window Spacer		Appelez-nous	-
106	WB07T10036		Shield Dr Trm Asm		Appelez-nous	-
112	WB55T10017		Lining Ovn Dr Asm		Appelez-nous	-
113	WB2K5322		Insulation Retainer		Appelez-nous	-
117	WB2K5310		Oven Door Glass Retainer		Appelez-nous	-
122	WG02F01222		Oven Door Glass-inner   (Replaces: WB57K5230)				$ 155.53
132	WB04T10008		Gasket Ovn Dr		Appelez-nous	-
134	WB7K5424		Vent Trim-black		Appelez-nous	-
136	WB15K5108		Door Handle-black		Appelez-nous	-
140	WB07T10127		Frame Ovn Dr Asm (blk)		Appelez-nous	-
141	WB35T10006		Insulation		Appelez-nous	-
147	WB56T10044		Door Ovn W/gls Asm		Appelez-nous	-
338	WS01L00806		Window Pack Kit Lg   (Replaces: WB56K20)			Immediately	$ 80.08
353	WB2X8320		Window Clip		Appelez-nous	-
680	WR1X1850		Scr 7-19 Hxw 1/2		Appelez-nous	-
694	WG02A00792		Screw   (Replaces: WB1K5157)				$ 3.97
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
847	WB1X1317		Screw-black		Appelez-nous	-
856	WG02F04011		Screw Tc10-32x.250hexni   (Replaces: WB1X1293)				$ 3.97
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
976	WB1K5199		Pal Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
