SELECT A DIAGRAM
1 - Control Panel
2 - Body Parts
3 - Door
4 - Door Lock

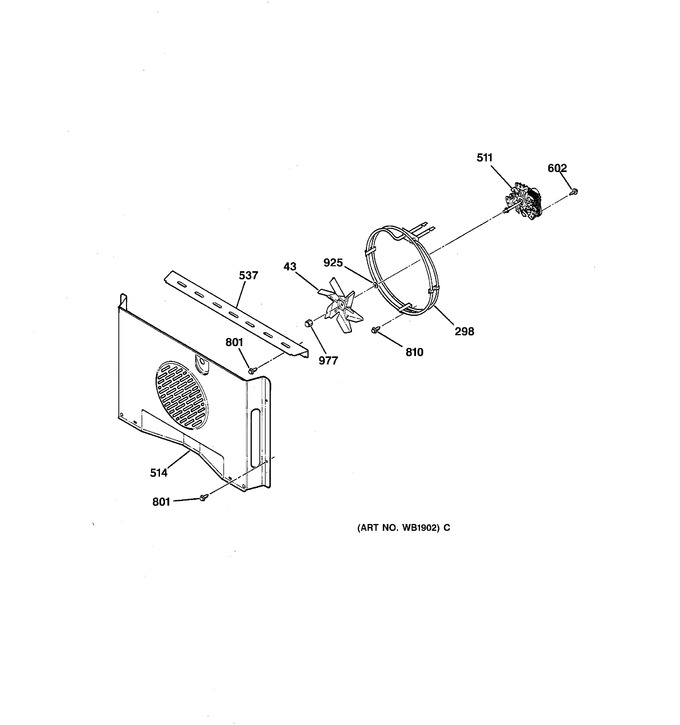

5 - Fan Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | WG02F00731 | Fan Blade (Replaces: WB02T10018) |
|
Immediately | $ 36.53 | ||||
| 298 | WB44T10001 | Convx Element |
|
- | |||||
| 511 | WB26T10006 | Fan Motor Conv. |
|
- | |||||
| 514 | WB26T10002 | Fan Cover |
|
- | |||||
| 537 | WB26T10001 | Fan Cover-convx |
|
- | |||||
| 602 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 925 | WB1K5117 | Washer .250idx.812od |
|
- | |||||
| 977 | WS01A01105 | Nut (Replaces: WB02T10017) |
|
Immediately | $ 9.50 |
