SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)

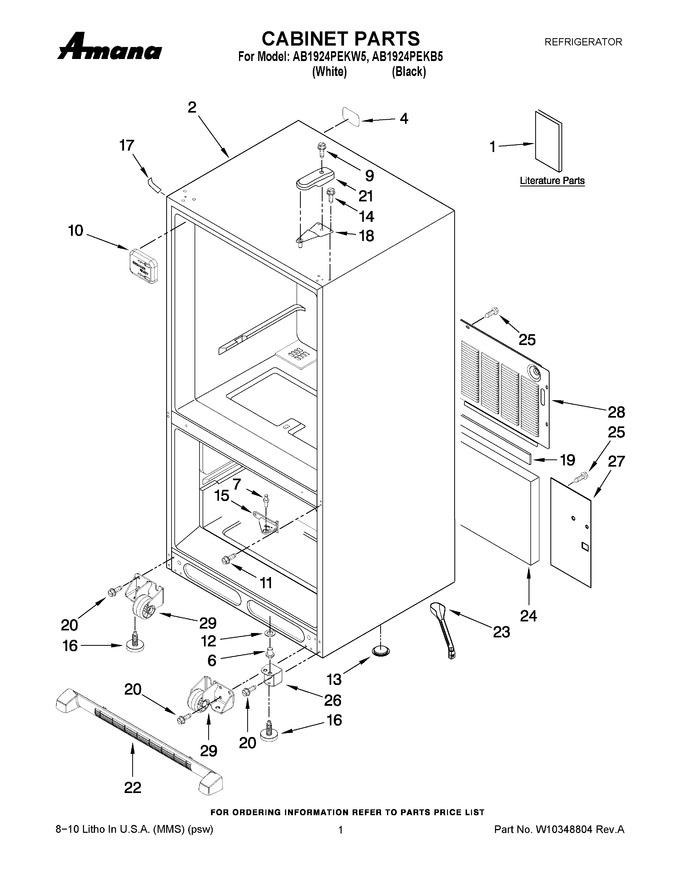

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828189SP		Owners Manual		Appelez-nous	-
1	W10308619		Tech Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
4	W11685757		Label, Fill Tube   (Replaces: 12249902)				$ 7.06
6	67007018		Pin, Bottom Hinge   (Replaces: 10200802)			Immediately	$ 8.21
7	WP67006744		Pin, Center Hinge (rear)   (Replaces: 10351005)				$ 8.27
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	WP67001098		Cover, Fill Tube   (Replaces: 12477501)				$ 8.03
11	W11573362		Screw   (Replaces: 12992201)				$ 14.02
12	WPM0274062		Shim (black)   (Replaces: M0274062)			Immediately	$ 24.43
12	WPM0274057		Shim (white)   (Replaces: M0274057)			Immediately	$ 8.00
13	A3076901		Plug, Button				$ 5.70
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	W11689473		Hinge, Center (white)   (Replaces: 12607103WD)				$ 66.47
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 152.73
16	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
17	12587703W		Cover, Corner (white)				$ 21.81
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
18	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 44.89
19	B5759655		Gasket				$ 12.41
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.69
21	67001012		Cover, Hinge (black)   (Replaces: 12477601B)				$ 47.34
21	67001014		Cover, Hinge (white)   (Replaces: 12477601W)				$ 21.28
22	WPW10534167		Grille Assembly (includes Clips) (black)   (Replaces: W10236650)				$ 91.42
22	WPW10534166		Grille Assembly (includes Clips) (white)   (Replaces: W10236649)			Immediately	$ 76.61
23	W10619951		Tube, Drain   (Replaces: W10210987)			Immediately	$ 42.39
24	12820505		Insulation, Sound				$ 71.70
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	W10315062		Hinge, Bottom (white)				$ 40.47
26	W10325141		Hinge, Bottom (black)				$ 62.90
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 20.34
28	W10211980		Cover, Unit		Appelez-nous	-
29	W11820444		Assembly, Roller (left)   (Replaces: W10275850)			Immediately	$ 35.57
29	W11820445		Assembly, Roller (right)   (Replaces: W10275849)			Immediately	$ 35.57

    View Diagram in Separate Window       Print Part List
