SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

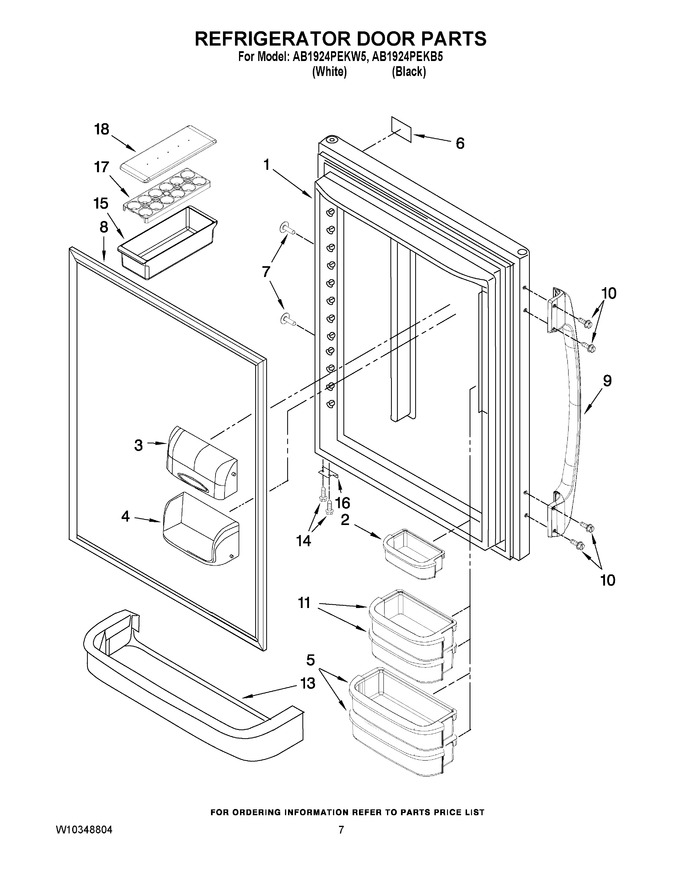

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658529W		Refrigerator Door (w/ Insulation) (white)		Appelez-nous	-
1	12658529B		Refrigerator Door (w/ Insulation) (black)		Appelez-nous	-
2	67001141		Bucket, Short   (Replaces: 12737701V)			Immediately	$ 75.15
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WPW10324005		Bucket (medium)   (Replaces: 12557212V)				$ 74.05
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
7	12991101		Screw, Handle (black)				$ 12.83
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10164030)			Immediately	$ 347.85
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: W10164031)				$ 345.10
9	W10179174N		Handle, Door (black)		Appelez-nous	-
9	W10179172N		Handle, Door (white)		Appelez-nous	-
10	WP67006197		Screw   (Replaces: 12990202SP)				$ 8.06
11	67001141		Door Bucket (small)   (Replaces: 12557211V)			Immediately	$ 75.15
13	12690501		Retainer, Door				$ 41.75
14	WP98165		Screw   (Replaces: 12990504)				$ 8.00
15	10423131SP		Bin, Utility		Appelez-nous	-
16	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
16	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
17	10436506S		Tray, Egg		Appelez-nous	-
18	10436404S		Lid, Utility		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
