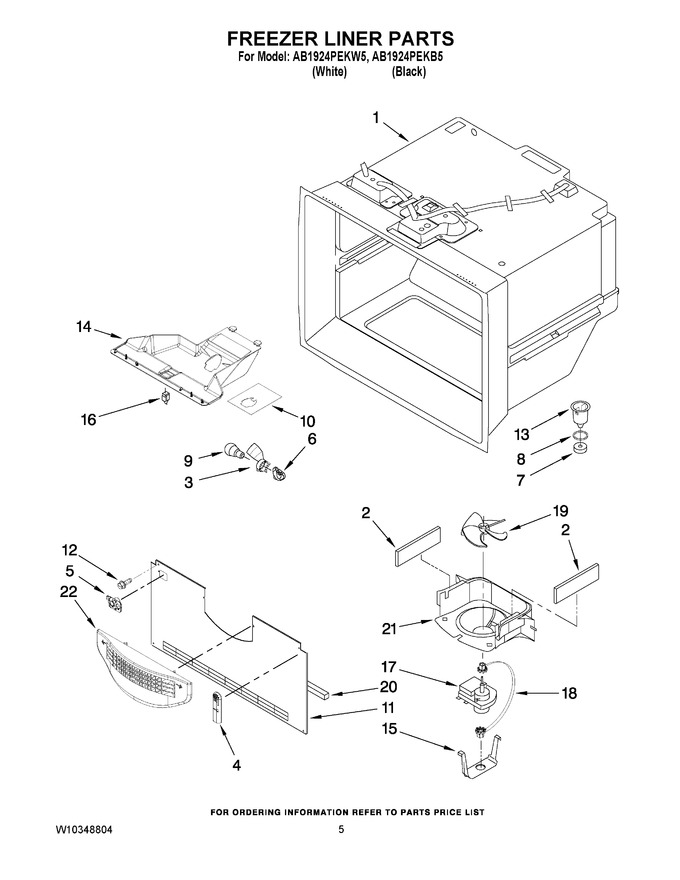

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | W10119914 | Shroud-lght.socket |
|
- | |||||
| 4 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 5 | W11448709 | Guide-fill Tube (Replaces: 12932103) |
|
$ 24.64 | |||||
| 6 | W11447232 | Socket, Light (Replaces: W10134764V) |
|
Immediately | $ 13.21 | ||||
| 7 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 8 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 9 | WP67002552 | Bulb, Light (Replaces: A0282808V) |
|
Immediately | $ 11.75 | ||||
| 10 | W11469652 | Foil-fz Light (Replaces: W10277466) |
|
$ 22.18 | |||||
| 11 | W10308419 | Cover, Evaporator |
|
- | |||||
| 12 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 13 | W10815413 | Funnel, Drain (includes No.7 & 8) (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 14 | WPW10277025 | Module-fz Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466114) |
|
Immediately | $ 37.30 | ||||
| 17 | WP67005023 | Motor, Evaporator (Replaces: 10449516) |
|
$ 312.36 | |||||
| 18 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 19 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 20 | 12739111 | Gasket, Bottom |
|
$ 77.76 | |||||
| 21 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 |
