Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092203WQ Freezer Door (w/ Insulation) (white) Appelez-nous -
2 W10119666 Handle, Door (white) Special Order $ 104.36

3 W10443319 Gasket, Door (white)   (Replaces: W10133249) Special Order $ 281.76

4 WP12992902 Screw, Handle   (Replaces: 12992902) Special Order $ 11.91

5 8208212 Plug, Button (white) Appelez-nous -
7 WP67004977 Bushing (white)   (Replaces: 67004977) Special Order $ 8.20

8 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 69.29

9 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57


    View Diagram in Separate Window     Print Icon   Print Part List

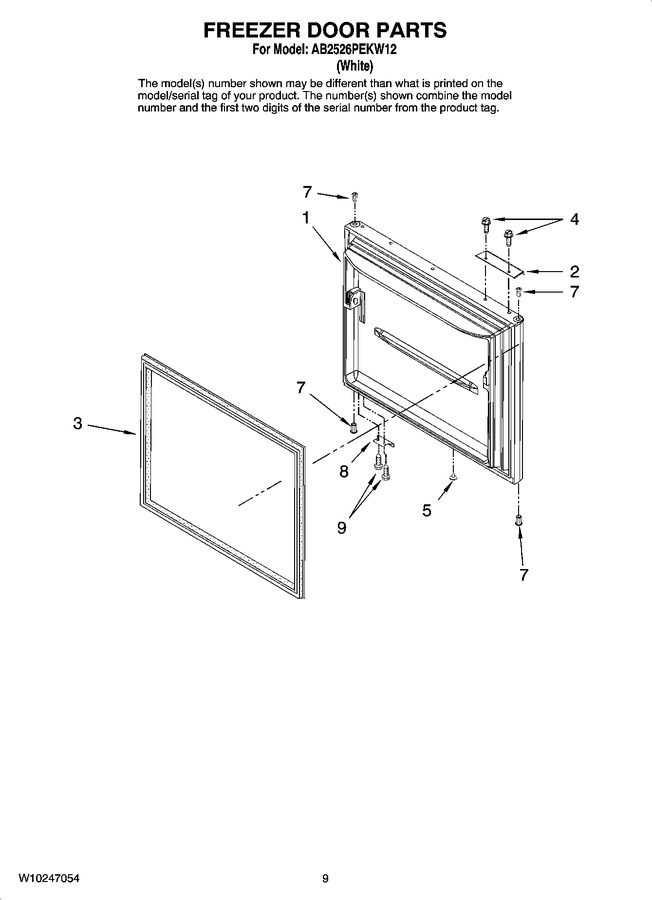

Diagram for AB2526PEKW12
