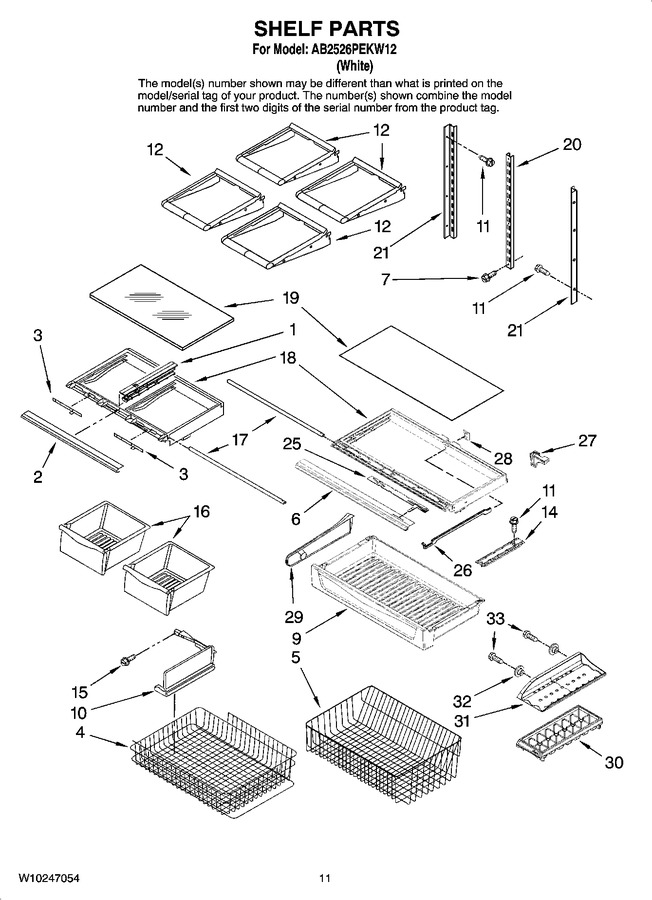

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 67004514) |
|
Immediately | $ 33.37 | ||||
| 2 | 67004420 | Trim, Crisper |
|
- | |||||
| 3 | WP67005864 | Slide, Humidity (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 4 | 67004987 | Basket, Freezer (upper) |
|
$ 244.35 | |||||
| 5 | WPW10503184 | Basket, Freezer (lower) (Replaces: 67006025) |
|
$ 250.08 | |||||
| 6 | W10656985 | Trim, Pantry (Replaces: 67001913) |
|
$ 137.68 | |||||
| 7 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 9 | 67005917 | Pan, Pantry |
|
- | |||||
| 10 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 12 | 67004637 | Shelf, Glide (4) |
|
$ 113.49 | |||||
| 14 | WP67001719 | Track, Deli (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 15 | 67006608 | Screw |
|
- | |||||
| 16 | 67005915 | Pan, Crisper |
|
$ 65.50 | |||||
| 17 | WP12642303WD | Brace, Crisper (2) (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 18 | WP67003854 | Frame, Crisper (2) (Replaces: 67003854) |
|
Immediately | $ 227.55 | ||||
| 19 | WP67006704 | Glass, Crisper (Replaces: 67006704) |
|
$ 212.77 | |||||
| 20 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 21 | 67001317 | Ladder, Side |
|
$ 39.13 | |||||
| 25 | 67002002 | Slide,pantry |
|
Immediately | $ 16.04 | ||||
| 26 | 67004555 | Bar, Control |
|
- | |||||
| 27 | WP12531601 | Tunnel,pantry (Replaces: 67002004) |
|
$ 11.04 | |||||
| 28 | 67002005 | Gasket, Pantry |
|
- | |||||
| 29 | 67004556 | Divider, Pantry |
|
$ 21.41 | |||||
| 30 | WP841180A | Tray, Ice Cube (Replaces: 67001747) |
|
Immediately | $ 47.84 | ||||
| 31 | 12646501 | Rack, Ice |
|
- | |||||
| 32 | 10972101 | Spacer, Rack |
|
$ 7.82 | |||||
| 33 | WP67006908 | Screw (2) (Replaces: 67006908) |
|
Immediately | $ 8.78 |
