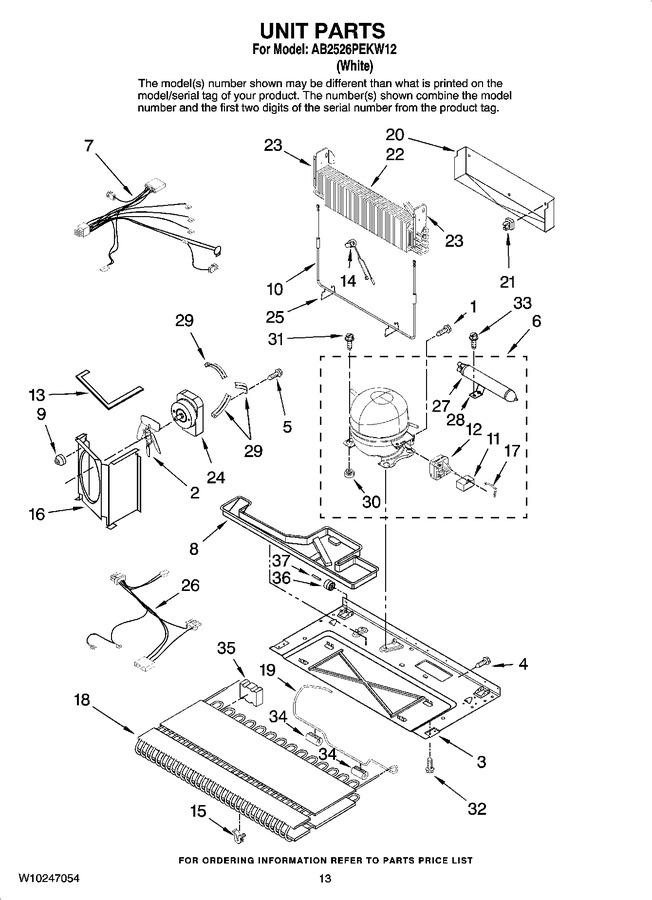

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw (3)   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	12457108		Basepan				$ 93.58
4	67006425		Screw			Immediately	$ 7.30
5	WP67004954		Screw (3)   (Replaces: M1261402)				$ 8.18
6	12049773		Compressor (includes 11,12, 17,27,28,&30)		Appelez-nous	-
7	W10169651		Harness, Evap. Heater		Appelez-nous	-
8	WP12579803		Drain Pan   (Replaces: 12579803)				$ 257.73
9	61004743		Grommet (3)				$ 5.51
10	12729120		Evaporator Heater		Appelez-nous	-
11	WP2201147		Capacitor   (Replaces: 67007162)				$ 135.42
12	2303344		Overload/relay (service)		Appelez-nous	-
12	W10848274		Overload/relay (production)   (Replaces: 67006453)				$ 185.85
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.94
14	W11084905		Thermostat   (Replaces: 12639322SP)		Appelez-nous	-
15	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.76
16	12575308		Shroud, Condenser		Appelez-nous	-
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006132		Condenser   (Replaces: 67006132)				$ 319.75
19	WP12866903		Tube, Discharge   (Replaces: 12866903)			Immediately	$ 140.21
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 57.02
21	10623002		Clip, Evaporator				$ 12.11
22	12002041		Evaporator   (Replaces: 67003720)				$ 366.06
23	67001083		Dam (left Side)		Appelez-nous	-
23	67001084		Dam (right Side)		Appelez-nous	-
24	WPW10246191		Motor, Fan   (Replaces: W10211284)				$ 317.39
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W10169655		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Fan   (Replaces: 67004953)				$ 72.27
30	WPW10169124		Grommet (4)   (Replaces: 67003493)				$ 7.55
31	12846902		Screw (2)				$ 13.64
32	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
33	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
34	67005680		Grommet (2)				$ 22.10
35	67005491		Block, Condenser		Appelez-nous	-
36	WP10450603		Roller (2)   (Replaces: 10450603)				$ 8.27
37	M1205302		Axle, Roller (2)				$ 5.85
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	W10462018		Cord, Power   (Replaces: 13015202)		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
