SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts

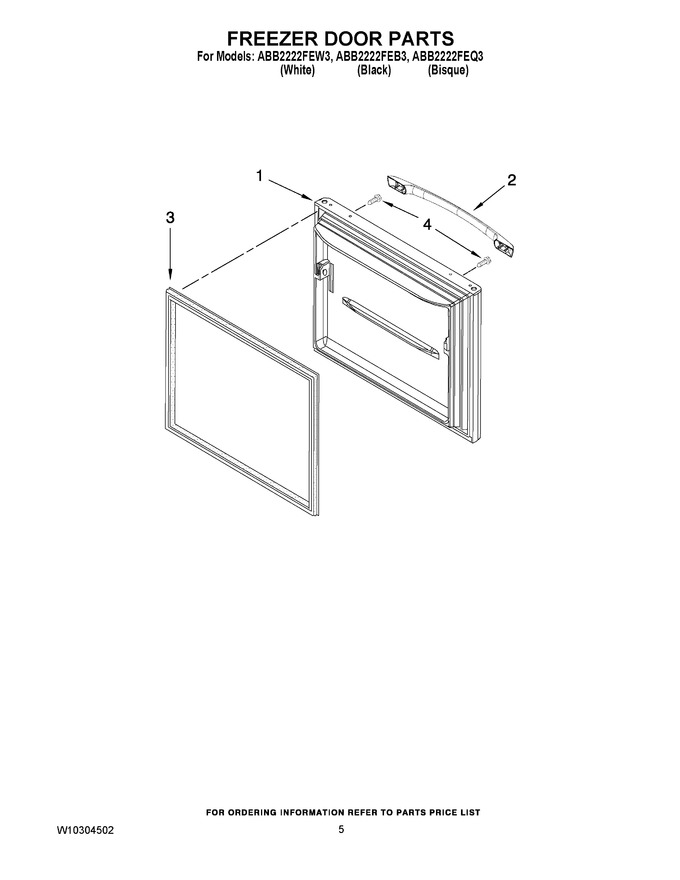

03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13092202WQ		Freezer Door (w/ Insulation) (white)		Appelez-nous	-
1	13092202BQ		Freezer Door (w/ Insulation) (black)		Appelez-nous	-
1	13092202QQ		Freezer Door (w/ Insulation) (bisque)		Appelez-nous	-
2	W10179171		Handle (white)				$ 77.64
2	W10179170		Handle (bisque)		Appelez-nous	-
2	W10179169		Handle (black)				$ 72.25
3	W10443315		Door Gasket, Magnetic (white)   (Replaces: W10164036)				$ 193.98
3	WPW10436250		Door Gasket, Magnetic (black)   (Replaces: W10164037)			Immediately	$ 365.39
4	WP12992902		Screw, Handle Hole (white)   (Replaces: 12992902)				$ 11.91
