SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts

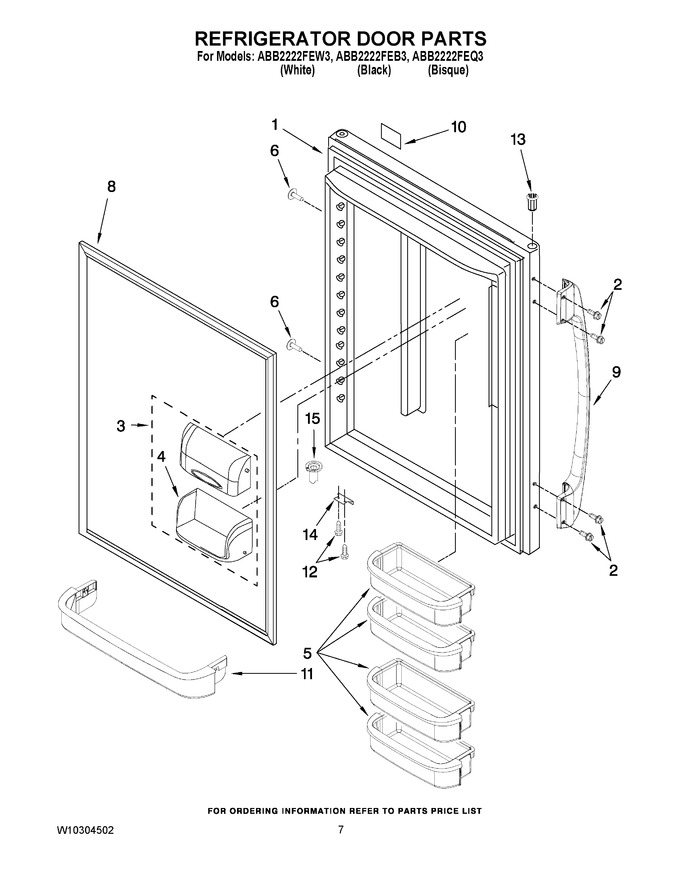

05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658530WQ		Refrigerator Door (w/liner) (white)		Appelez-nous	-
1	12658530CQ		Refrigerator Door (w/liner) (bisque)				$ 439.53
1	12658530BQ		Refrigerator Door (w/liner) (black)				$ 293.40
2	12992802		Screw		Appelez-nous	-
3	WP12744905		Door, Dairy   (Replaces: 12744905V)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WP67001021		Bucket (medium) (4)   (Replaces: 12557204V)				$ 80.90
6	98008169		Screw, Handle Hole (bisque)   (Replaces: 12991104)		Appelez-nous	-
6	12991105		Screw,handle Hole (black)		Appelez-nous	-
6	12991103		Screw, Handle Hole (white)				$ 12.03
8	W10443313		Door Gasket, Magnetic (white)   (Replaces: W10164034)				$ 343.82
8	WPW10436248		Door Gasket, Magnetic (black)   (Replaces: W10164035)				$ 286.97
9	W10179173		Door Handle (bisque)				$ 81.32
9	W10179172		Door Handle (white)				$ 86.31
9	W10179174		Door Handle (black)				$ 86.13
10	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
11	67001019		Retainer, Ref Door   (Replaces: 12557905)			Immediately	$ 107.52
12	WP98165		Screw   (Replaces: 12990504)				$ 8.00
13	WP67004977		Bushing (white)   (Replaces: 10961006W)				$ 7.81
13	67004978		Bushing (black)   (Replaces: 10961006B)				$ 21.05
14	12968202W		Stop, Door (white)   (Replaces: 10447111)				$ 65.99
14	67003781		Stop, Door (bisque)   (Replaces: 10447113)				$ 79.16
14	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.05
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76

    View Diagram in Separate Window       Print Part List
