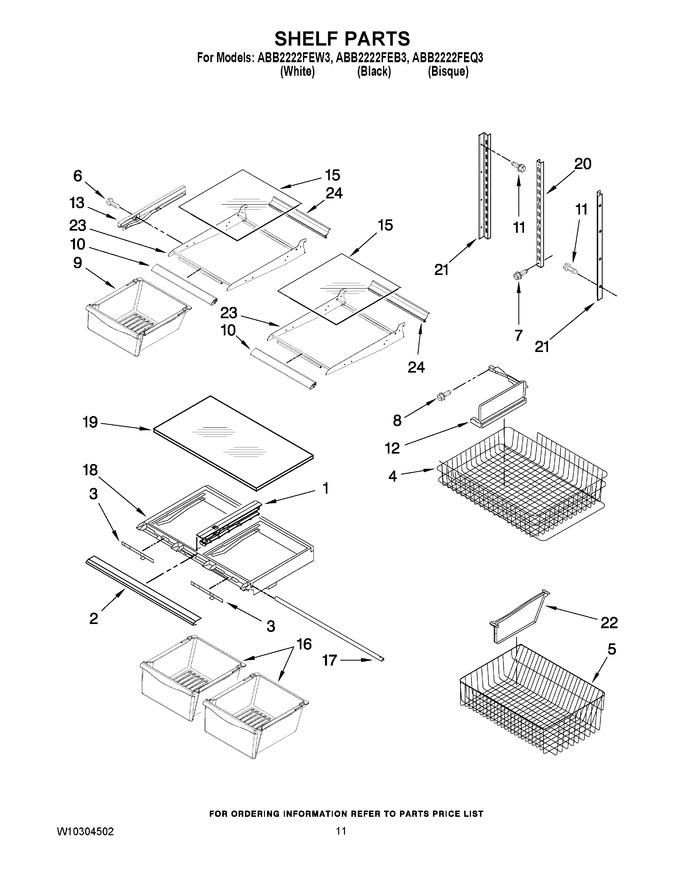

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 118.46 | ||||
| 2 | W10231341 | Trim, Crisper |
|
$ 50.13 | |||||
| 3 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 4 | 12896402 | Basket, Freezer Upper |
|
- | |||||
| 5 | 13016002 | Basket, Freezer (lower) |
|
$ 130.75 | |||||
| 6 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 14.72 | ||||
| 7 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.79 | |||||
| 8 | 12990601N | Screw |
|
- | |||||
| 9 | WP67001314 | Pan, Deli (Replaces: 12656404V) |
|
$ 163.10 | |||||
| 10 | W10231476K | Trim, Front |
|
- | |||||
| 11 | 67006425 | Screw (6) (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | 12693802N | Divider, Top |
|
- | |||||
| 13 | WP67001053 | Glide Rh (Replaces: 12656602V) |
|
Immediately | $ 9.24 | ||||
| 13 | WP67001054 | Glide Lh (Replaces: 12656601V) |
|
Immediately | $ 8.82 | ||||
| 15 | 10370099V | Glass, Shelf (4) |
|
- | |||||
| 16 | WP67002633 | Crisper (2) (Replaces: 12530505) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 22 | 12659608 | Divider, Basket Lower |
|
- | |||||
| 23 | 10460107V | Shelf (4) |
|
- | |||||
| 24 | 10946008V | Trim, Rear (4) |
|
- |
