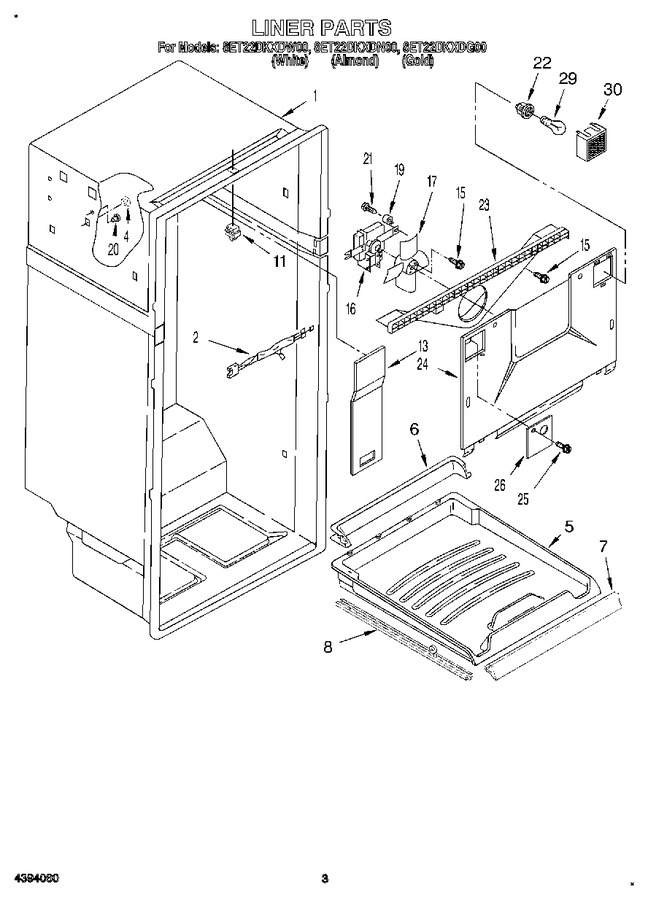

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
4	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 7.65
5	2174376		Floor, Pull-out Freezer		Appelez-nous	-
6	2174378		Fence, Freezer Floor		Appelez-nous	-
7	2174323		Trim, Freezer Floor		Appelez-nous	-
8	2174370		Track, Freezer Floor (2)		Appelez-nous	-
11	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
13	2157411		Cover, Air Duct		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 7.75
16	482731		Motor, Fan   (Replaces: 2169116)			Immediately	$ 79.05
17	WP1100938		Blade, Fan   (Replaces: 2162448)				$ 87.87
19	531933		Grommet (2)				$ 5.70
20	1110779		Grommet (4)		Appelez-nous	-
21	489168		Screw		Appelez-nous	-
22	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
23	2160644		Scroll, Fan		Appelez-nous	-
24	2174325		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489451)			Immediately	$ 7.79
26	WP2217784		Hole Cover, Evaporator   (Replaces: 2183038)				$ 44.97
29	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 12.93
30	2174443		Light Lens		Appelez-nous	-
