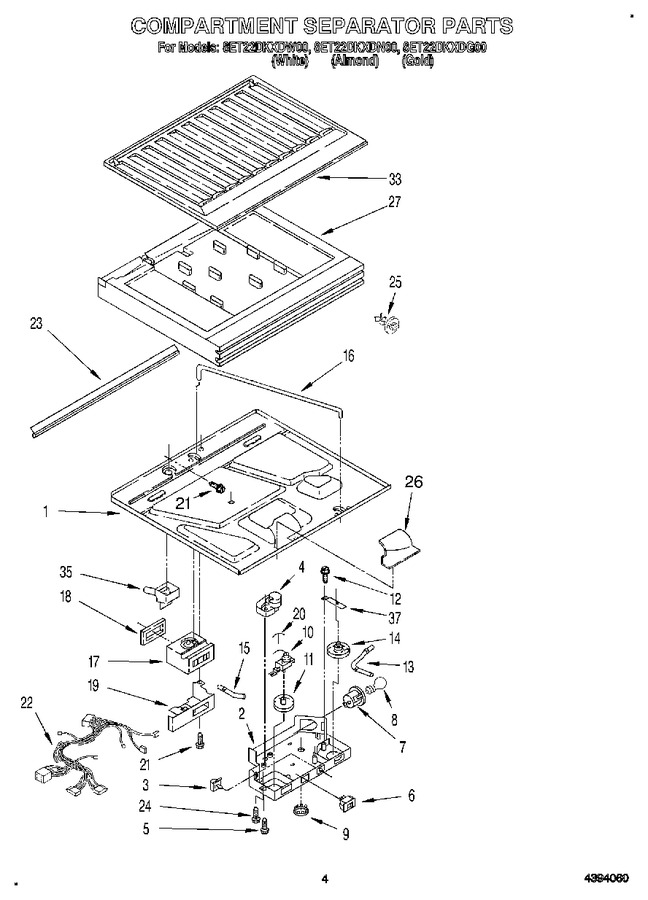

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174810		Bottom, Compartment Separator		Appelez-nous	-
2	2174824		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 40.40
4	WP2183400		Timer, Defrost   (Replaces: 2162044)			Immediately	$ 86.97
5	WP487353		Screw   (Replaces: 488693)				$ 7.57
6	938049		Switch, Toggle		Appelez-nous	-
7	WPW10119935		Socket (2)   (Replaces: 2155597)				$ 101.10
8	W10887190		Bulb, Light   (Replaces: 2160708)			Immediately	$ 18.31
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Assembly   (Replaces: 1123212)				$ 209.48
11	2174826		Knob, Thermostat		Appelez-nous	-
12	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.72
13	2160639		Light, Bar		Appelez-nous	-
14	2174827		Knob, Air Control		Appelez-nous	-
15	2160638		Light, Bar		Appelez-nous	-
16	1105460		Rod, Connecting		Appelez-nous	-
17	2157253		Air Diffuser Assembly		Appelez-nous	-
18	2157255		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	WP2196003		Thermostat, Tube Barrier   (Replaces: 1106693)				$ 7.95
21	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	2174831		Wiring Assembly, Control Box		Appelez-nous	-
23	2159684		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.95
25	2172812		Clip, Thermostat Tube Retention		Appelez-nous	-
26	1108196		Insulation, Filler		Appelez-nous	-
27	2174366		Insulation, Compartment Separator		Appelez-nous	-
33	2174367		Separator, Compartment (top)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
37	1105457		Bracket, Control Knob		Appelez-nous	-
