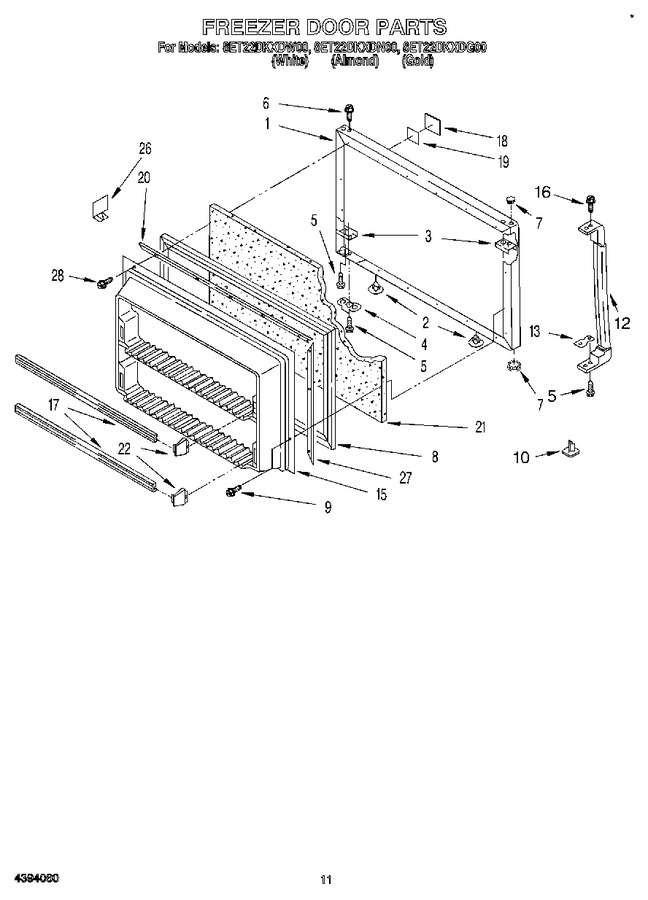

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159163		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	2159160		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2159162		Panel, Freezer Door (also Order Item 21) (gold)		Appelez-nous	-
2	989879		Hole Plug (2) (gold)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.75
6	WP8281206		Screw   (Replaces: 489028)				$ 7.94
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
7	WP2212648		Hole Plug (gold)   (Replaces: 989893)			Immediately	$ 7.80
8	2188460A		Door Gasket Magnetic   (Replaces: 1122831)				$ 220.49
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
9	WP489069		Screw ((12))   (Replaces: 489101)			Immediately	$ 7.86
10	2174435		Plug, Hole (black)		Appelez-nous	-
10	2174434		Plug, Hole (almond)		Appelez-nous	-
10	2174433		Plug, Hole (white)		Appelez-nous	-
12	2179305		Handle, Door (white Model)		Appelez-nous	-
12	2179307		Handle, Door (black Model)		Appelez-nous	-
12	2179306		Handle, Door (almond Model)		Appelez-nous	-
13	2151813		Shim, Handle		Appelez-nous	-
15	1122575		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.49
17	2171403		Trim, Door Shelf (2)		Appelez-nous	-
18	2175380		Nameplate (white Model)		Appelez-nous	-
18	2175381		Nameplate (almond Model)		Appelez-nous	-
18	2175382		Nameplate (black Model)		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
20	1122552		Retainer, Gasket		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.00
26	1123293		Divider, Door Shelf (2)		Appelez-nous	-
27	1122553		Retainer, Gasket		Appelez-nous	-
28	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
28	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
28	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
28	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
28	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
28	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
28	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
28	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
28	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
28	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
28	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
28	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
28	2172761		Door Reversal Instructions		Appelez-nous	-
28	350942		Primer White (13 Oz. Spray Can)				$ 89.66
28	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
28	833938		Kit, Terminal Connector				$ 8.07
28	WP489442		Screw (20)   (Replaces: 489442)			Immediately	$ 10.94
28	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
28	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
28	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2174843		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2179516		Energy Guide		Appelez-nous	-
	LIT2170418		Use & Care Guide		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
