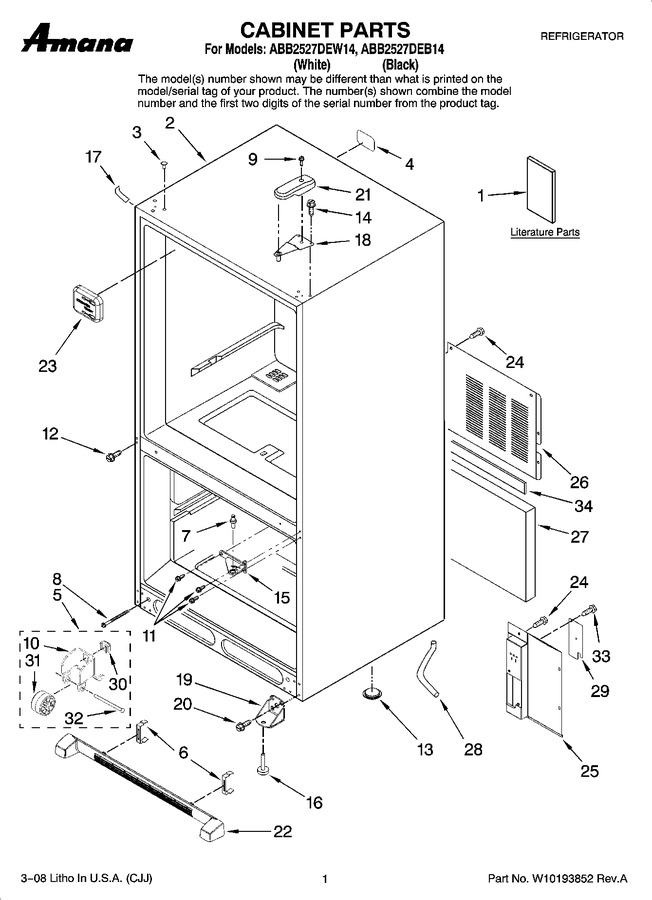

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10137539		Owners Manual		Appelez-nous	-
1	W10123894		Energy Tag		Appelez-nous	-
1	67006716		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 7.76
3	WP67001130		Plug, Button (3) (white)   (Replaces: 67001130)			Immediately	$ 5.98
4	W11685757		Label, Fill Tube   (Replaces: 67005064)				$ 7.06
5	67006118		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
8	71003131		Bolt, Adjusting (rear)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
11	W11573362		Screw (3)   (Replaces: 67006380)				$ 14.02
12	WP98165		Screw   (Replaces: 67006473)				$ 8.00
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 66.47
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 152.73
16	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
19	12906303WD		Bracket, Foot   (Replaces: 67007174)				$ 84.36
20	67006564		Screw			Immediately	$ 7.69
21	67001014		Cover Hinge (white)				$ 21.28
21	67001012		Cover Hinge (black)				$ 47.34
22	WPW10534154		Grille Assembly (includes Clips) (white)   (Replaces: 67006377)				$ 146.34
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 147.21
23	WP67001098		Cover, Fill Tube   (Replaces: 67001098)				$ 8.03
24	67006425		Screw (9)			Immediately	$ 6.95
25	12479803		Cover, Water Valve		Appelez-nous	-
26	67006101		Cover, Unit				$ 76.68
27	67003796		Insulation, Sound				$ 19.27
28	W10164397		Tube, Drain				$ 14.79
29	12479901		Plate, Cover		Appelez-nous	-
30	M0286708		Nut, Speed				$ 45.57
31	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
32	M1205302		Pin				$ 5.85
33	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
34	B5759649		Gasket		Appelez-nous	-
