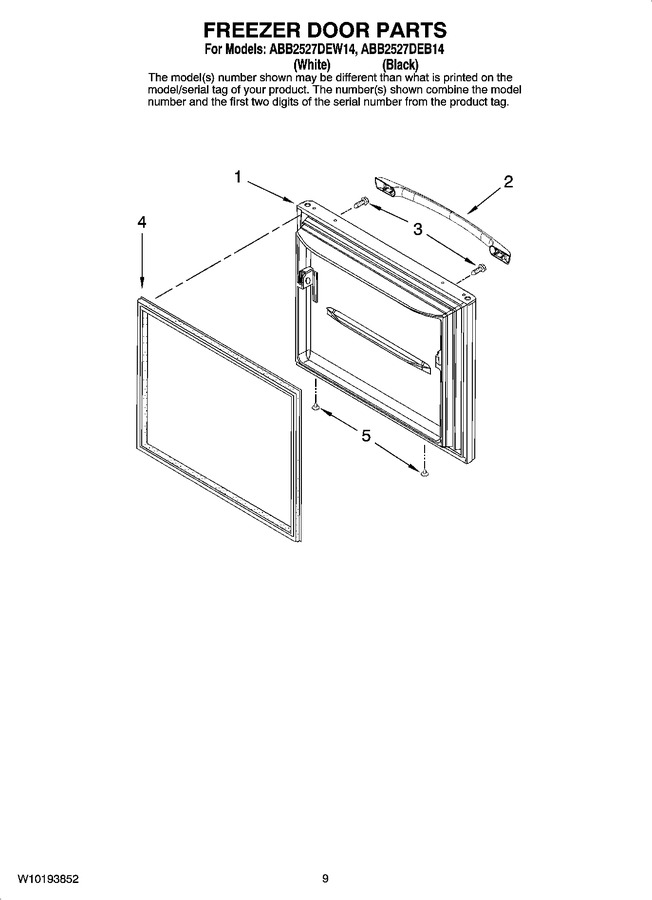

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188317		Freezer Door (w/ Insulation) (white)		Appelez-nous	-
1	W10188318		Freezer Door (w/ Insulation) (black)		Appelez-nous	-
2	W10119666		Handle, Door (white)				$ 104.36
2	67006463		Handle, Door (black)		Appelez-nous	-
3	WP12992902		Screw   (Replaces: 12992902)				$ 11.91
4	W10443319		Gasket, Door (white)   (Replaces: W10133249)				$ 281.76
4	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 362.28
5	10712401		Plug, Vent (2) (white)				$ 7.79
5	67004838		Plug, Vent (2) (black)				$ 11.21
