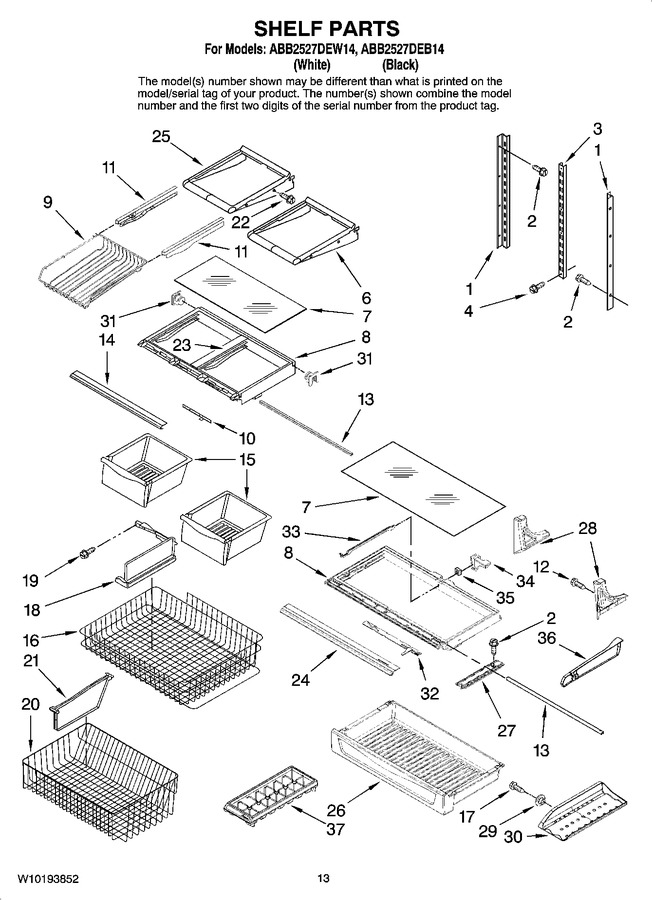

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001317		Ladder, Side				$ 39.13
2	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
3	67001073		Ladder, Center				$ 54.18
4	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.13
6	12463302		Shelf, Glide (2)		Appelez-nous	-
7	WP67006704		Glass (2)   (Replaces: 67006704)				$ 212.77
8	WP67003854		Frame, Crisper (2)   (Replaces: 67003854)			Immediately	$ 227.55
9	67004585		Rack, Can		Appelez-nous	-
10	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 7.81
11	WP67001053		Bracket, Glide (right)   (Replaces: 67001053)			Immediately	$ 9.24
12	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
13	WP12642303WD		Support, Frame (2)   (Replaces: 67002748)				$ 106.91
14	67004636		Trim, Crisper		Appelez-nous	-
15	67005915		Pan, Crisper (2)				$ 65.50
16	67004987		Basket, Freezer (upper)				$ 244.35
17	WP67006908		Screw   (Replaces: 67006908)			Immediately	$ 7.95
18	67004127		Divider, Upper Basket				$ 10.10
19	67006608		Screw		Appelez-nous	-
20	WPW10503184		Basket, Freezer (lower)   (Replaces: 67006025)				$ 238.17
21	67006644		Divider, Lower Basket		Appelez-nous	-
22	W11233072		Screw (4)   (Replaces: 67006626)			Immediately	$ 14.02
23	WP67004515		Rail, Center   (Replaces: 67004515)			Immediately	$ 168.30
24	67004554		Trim, Pantry		Appelez-nous	-
25	67004680		Shelf, Sta (2)		Appelez-nous	-
26	67005917		Pan, Pantry		Appelez-nous	-
27	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.56
28	WP12603701		Support, Pantry   (Replaces: 12603701)				$ 10.31
29	10972101		Spacer, Rack				$ 7.82
30	12646501		Rack, Ice		Appelez-nous	-
31	WP12603701		Support   (Replaces: 12603701)				$ 10.31
32	67002002		Slide,pantry			Immediately	$ 16.04
33	67004555		Bar, Pantry		Appelez-nous	-
34	WP12531601		Tunnel,pantry   (Replaces: 67002004)				$ 10.51
35	67002005		Gasket, Pantry		Appelez-nous	-
36	67004556		Divider, Pantry				$ 21.41
37	WP841180A		Tray, Ice   (Replaces: D7725402)			Immediately	$ 45.56
11A	WP67001054		Bracket, Glide (left)   (Replaces: 67001054)			Immediately	$ 8.40
