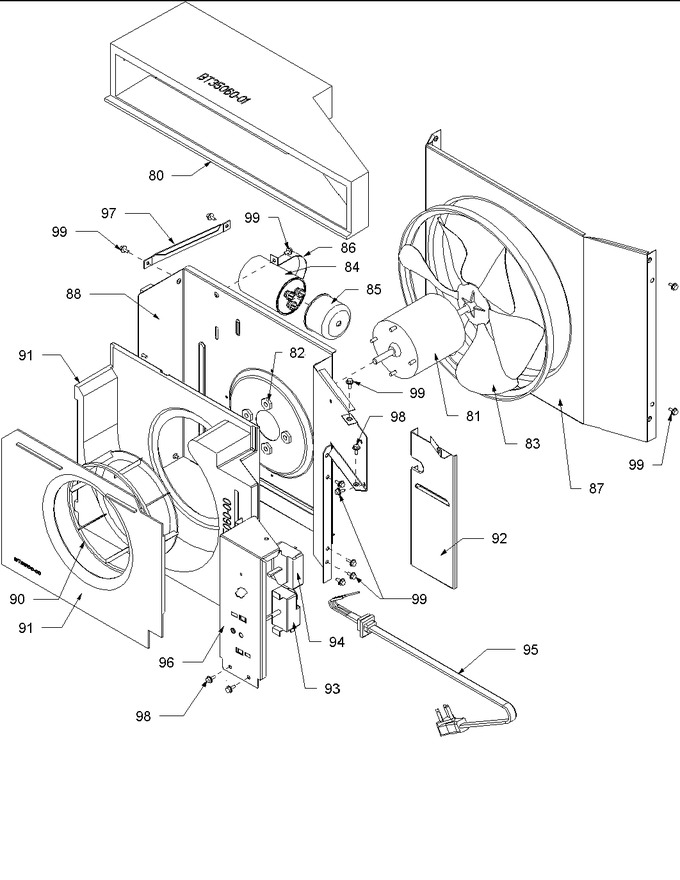

01 - Center Partition Assy
02 - Compressor And Tubing
03 - Outer Case And Front
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 80 | BT3506001 | Top, Blower (styrofoam) |
|
- | |||||
| 81 | BT1340022 | Motor, (fasco) |
|
- | |||||
| 82 | BT1393001 | Locknut, Nylon No.8-32 |
|
- | |||||
| 83 | BT1086707 | Blade, Fan |
|
- | |||||
| 84 | BT9457001 | Capacitor, Dual (service) |
|
- | |||||
| 85 | BT1392623 | Cap, Capacitor |
|
- | |||||
| 86 | 3084801 | Strap, Capacitior |
|
- | |||||
| 87 | 3511000P | Shroud, Fan |
|
- | |||||
| 88 | 3501000 | Partition, Center |
|
- | |||||
| 90 | BT1368015 | Wheel, Blower |
|
- | |||||
| 91 | BT3506000 | Scroll, Blower (styrofoam) |
|
- | |||||
| 91 | BT3510000 | Partition, Blower |
|
- | |||||
| 92 | 3504001 | Shield, Control |
|
- | |||||
| 93 | BT1370801 | Thermostat, Short Shaft (serv) |
|
- | |||||
| 94 | BT1370803 | Switch, Power (serv) |
|
- | |||||
| 95 | BT1210007 | Cord, Power |
|
- | |||||
| 96 | 3520000 | Panel, Control |
|
- | |||||
| 97 | 3501001 | Brace |
|
- | |||||
| 98 | WP489128 | Screw,no.8 X 3/8,blunt (Replaces: BT1393501) |
|
$ 10.26 | |||||
| 99 | WP90767 | Screw,no.8 X 3/8,1/4 (Replaces: BT1393500) |
|
Immediately | $ 7.43 |
