01 - Center Partition Assy

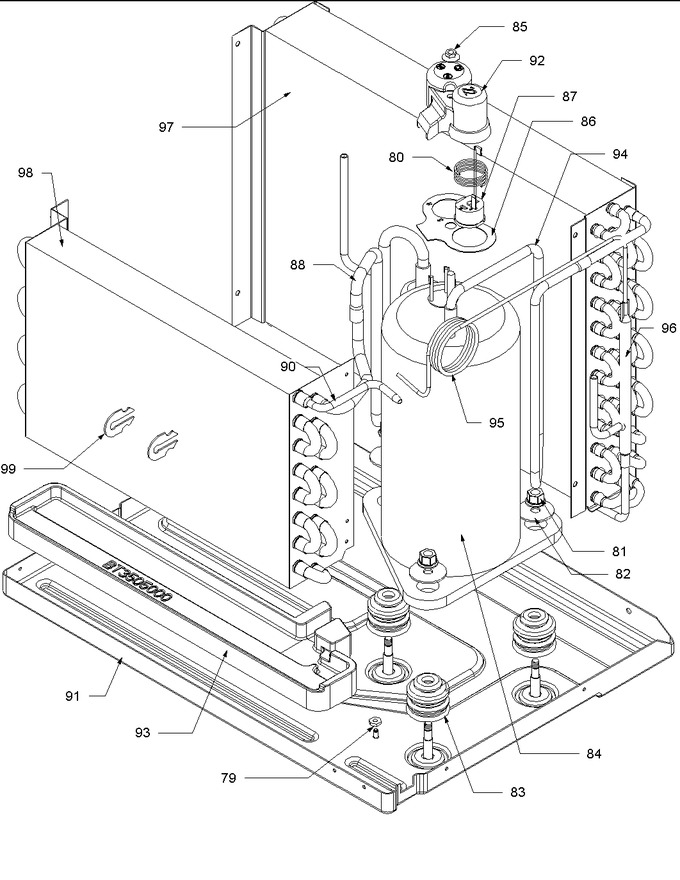

02 - Compressor And Tubing
03 - Outer Case And Front
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 79 | BT1393001 | Locknut, Nylon No.8-32 |
|
- | |||||
| 80 | BT1393705 | Spring |
|
- | |||||
| 81 | BT1393007 | Locknut, Nylon |
|
- | |||||
| 82 | BT1392904 | Washer. Fender |
|
- | |||||
| 83 | BT1339500 | Grommet - Comp |
|
- | |||||
| 84 | BT9266220 | Compressor |
|
- | |||||
| 85 | WP776338 | Nut (Replaces: BT1393008) |
|
$ 18.29 | |||||
| 86 | BT1392619 | Gasket Comp Cap |
|
- | |||||
| 87 | BT1243728 | Overload |
|
- | |||||
| 88 | 3593705 | Assy, Suction Line |
|
- | |||||
| 90 | 3593600 | Liquid, Line |
|
- | |||||
| 91 | 3500000P | Assy, Base Pan(pnt) |
|
- | |||||
| 92 | BT3055504 | Cover, Compressor |
|
- | |||||
| 93 | BT3505000 | Pan, Drain (styrofoam) |
|
- | |||||
| 94 | 3593636 | Tubing, Discharge |
|
- | |||||
| 95 | 3593631 | Capillary, Formed |
|
- | |||||
| 96 | 3593805 | Assy, Strainer |
|
- | |||||
| 97 | 3596505 | Assy, Condensor Coil |
|
- | |||||
| 98 | 3596000 | Assy, Evap Coil Tubing |
|
- | |||||
| 99 | BT1531802 | Clip, Bulb |
|
- |
