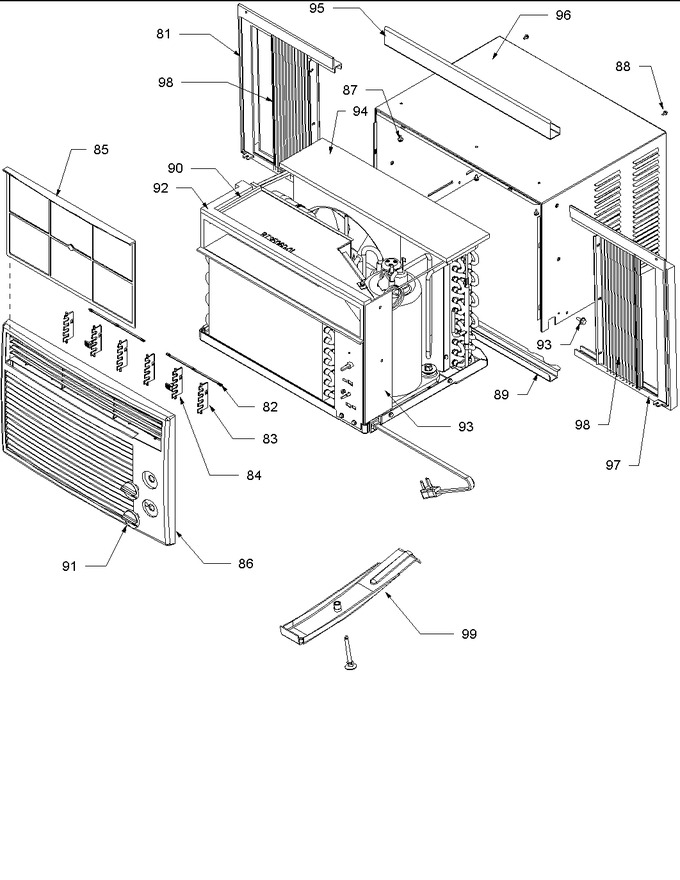

01 - Center Partition Assy


02 - Compressor And Tubing


03 - Outer Case And Front


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
81	BT3574101		Frame, Shutter Lh		Appelez-nous	-
82	BT35755602		Guide Bar		Appelez-nous	-
83	BT3575601		Louver W/o Thumb Control		Appelez-nous	-
84	BT3575600		Louver W/thumb Control		Appelez-nous	-
85	BT3575101		Filter		Appelez-nous	-
86	BT3575100		Front		Appelez-nous	-
87	WP90767		Screw,no.8 X 3/8,1/4   (Replaces: BT1393500)			Immediately	$ 7.43
88	WP489128		Screw,no.8 X 3/8,blunt   (Replaces: BT1393501)				$ 10.26
89	3003104		Guide, Bottom		Appelez-nous	-
90	BT1392602		Foam Gasket, .250		Appelez-nous	-
91	BT3075631		Knob, Rac (cool Gray)				$ 30.93
92	BT1392603		Foam Gasket, .375		Appelez-nous	-
93	BT1392627		Gasket		Appelez-nous	-
94	BT1392626		Gasket		Appelez-nous	-
95	3003005P		Guide,top		Appelez-nous	-
96	3550800		Assy, Wrapper		Appelez-nous	-
96	3502000P		Wrapper		Appelez-nous	-
97	BT3574100		Frame, Shutter Rh		Appelez-nous	-
98	BT3574200		Shutter		Appelez-nous	-
99	3084005		Bracket, Support		Appelez-nous	-
NI	BT1393207		Kit, Hardware		Appelez-nous	-
