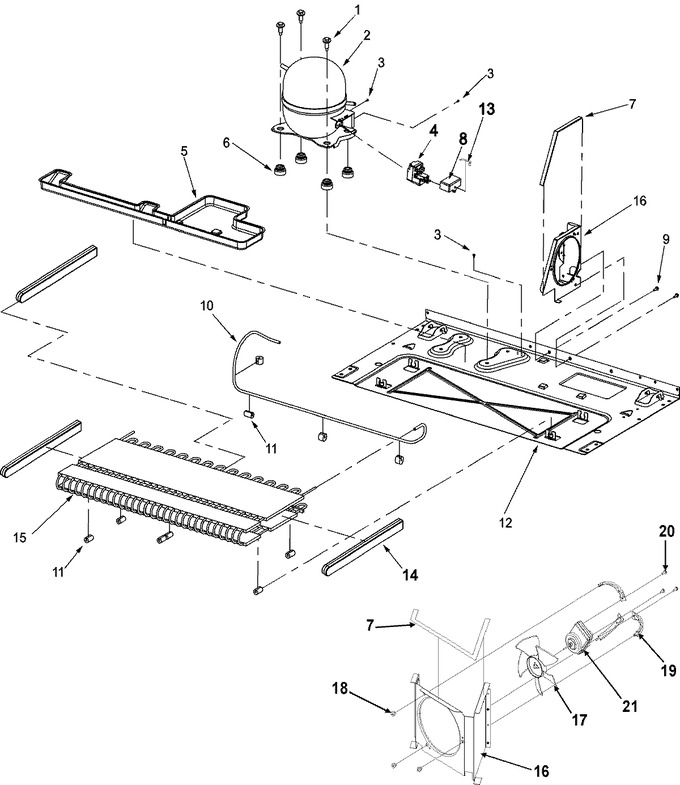

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12846902		Screw, Shoulder   (Replaces: 67006432)	10			$ 12.99
2	W10309990		Compressor Kit   (Replaces: 12002726)	10		Immediately	$ 632.81
3	12992301		Screw   (Replaces: 67006433)	10			$ 7.32
4	W10613606		Overload/relay W/capacitor   (Replaces: 67005560)	10		Immediately	$ 86.59
5	WP12579803		Pan, Drain   (Replaces: 67007175)	10			$ 245.45
6	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.19
7	WP854334		Seal   (Replaces: 61003210)	10			$ 13.28
8	W10613606		Capacitor W/overload Relay   (Replaces: 67005562)	10		Immediately	$ 86.59
9	67006425		Screw, Sm	10		Immediately	$ 6.95
10	WP12866903		Tube, Discharge   (Replaces: 67004700)	10		Immediately	$ 133.53
11	67005680		Grommet, Condenser	10			$ 21.05
12	67005889		Pan, Base	10	Appelez-nous	-
13	67007052		Clip, Capacitor	10	Appelez-nous	-
14	67005491		Block, Eps Condenser	10	Appelez-nous	-
15	WP67006131		Condenser   (Replaces: 67006131)	10			$ 366.74
16	12575305		Shroud, Cond Fan	10	Appelez-nous	-
17	W10156818		Blade, Cond Fan   (Replaces: 67004952)	10		Immediately	$ 62.11
18	61004743		Grommet, Bracket	10			$ 5.51
19	WP67004953		Bracket, Cond Motor   (Replaces: 67004953)	10			$ 68.83
20	WP67004954		Screw   (Replaces: 67004954)	10			$ 7.79
21	W11613295		Motor, Condenser Fan   (Replaces: 67004432)	10		Immediately	$ 136.84
NI	67004324		Harness-mc	10	Appelez-nous	-
