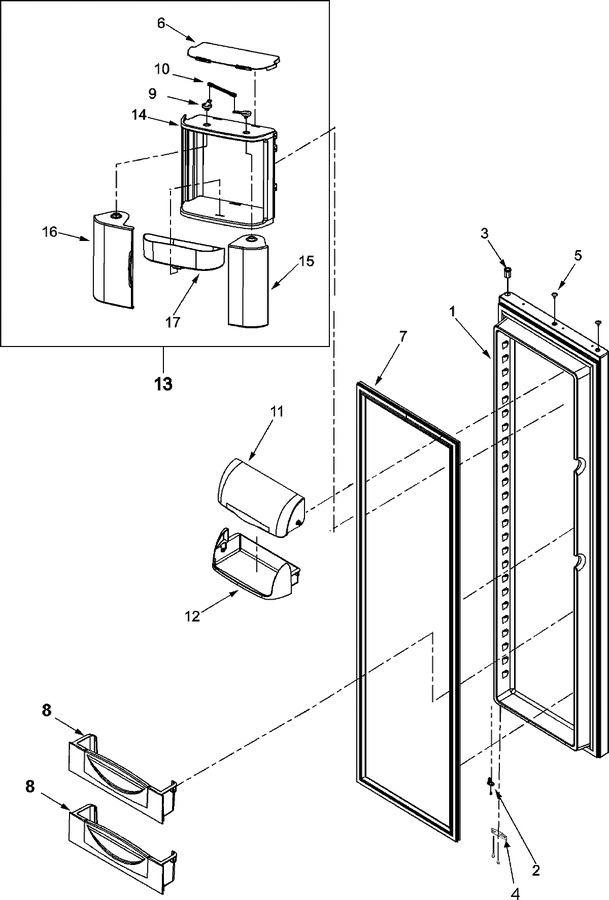

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006822		Door Assy., Ref. Foam (stnls)	10	Appelez-nous	-
2	67006672		Screw	10	Appelez-nous	-
2	67006493		Closure, Door (blk)	10			$ 19.93
3	67004976		Bushing, Door (blk)	10	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: 67006287)	10			$ 8.57
4	67007017		Stop, Door (blk)	10	Appelez-nous	-
5	M0311607		Plug, Button (gry)	10	Appelez-nous	-
6	67002291		Cover, Chiller	10	Appelez-nous	-
7	W10840101		Gasket, Ref Door (blk)   (Replaces: W10133482)	10			$ 327.25
8	67004285		Bucket, Ref. Door	10	Appelez-nous	-
9	67002293		Linkage, Chiller	10			$ 11.76
10	67002292		Linkage, Ctr Chiller	10	Appelez-nous	-
11	67002957		Door, Dairy	10	Appelez-nous	-
12	67002304		Tray, Dairy	10	Appelez-nous	-
13	67004286		Chiller Assy (large)	10	Appelez-nous	-
13	67004287		Chiller Assy (mini)	10	Appelez-nous	-
14	67002294		Frame, Large Chiller	10	Appelez-nous	-
14	67002409		Frame, Mini Chiller	10	Appelez-nous	-
15	67002297		Door, Large Chiller (rt)	10	Appelez-nous	-
15	67002411		Door, Mini Chiller (rt)	10	Appelez-nous	-
16	67004268		Door, Chiller	10	Appelez-nous	-
16	67004269		Door, Mini Chiller	10	Appelez-nous	-
17	67004268		Door, Chiller	10	Appelez-nous	-
