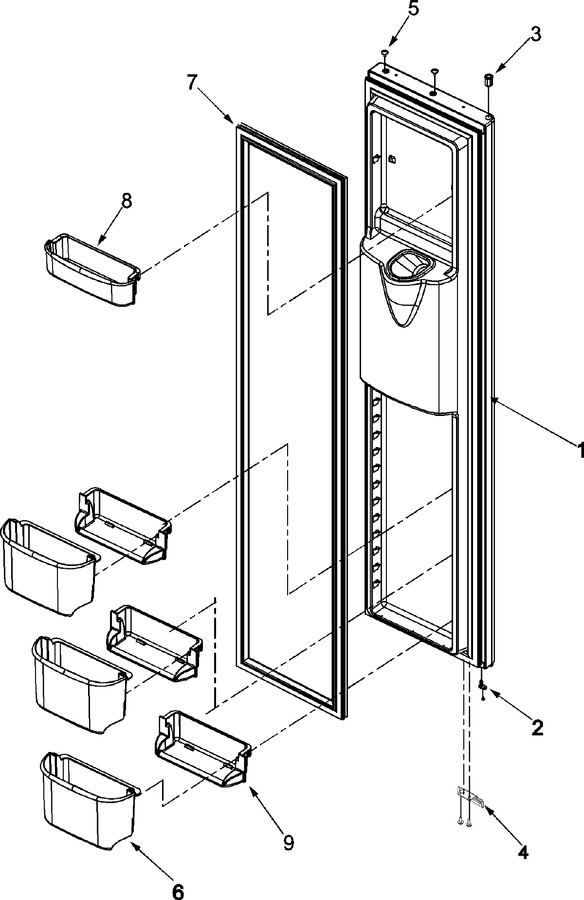

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006953		Door Assy., Frz. Foam (stnls)	10	Appelez-nous	-
2	67006677		Closure, Door (blk)	10	Appelez-nous	-
2	67006672		Screw	10	Appelez-nous	-
3	12395501B		Bushing, Door (blk)	10	Appelez-nous	-
4	67007020		Stop, Door (blk)	10	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: 67006287)	10			$ 8.00
5	M0311607		Plug, Button (gry)	10	Appelez-nous	-
6	67004291		Frame, Tilt Bucket	10	Appelez-nous	-
7	W10133491		Gasket, Fz Door (blk)	10			$ 342.75
8	67004772		Bucket, Upr Fz Dr	10	Appelez-nous	-
9	67004290		Bucket, Fz Tilt	10	Appelez-nous	-
