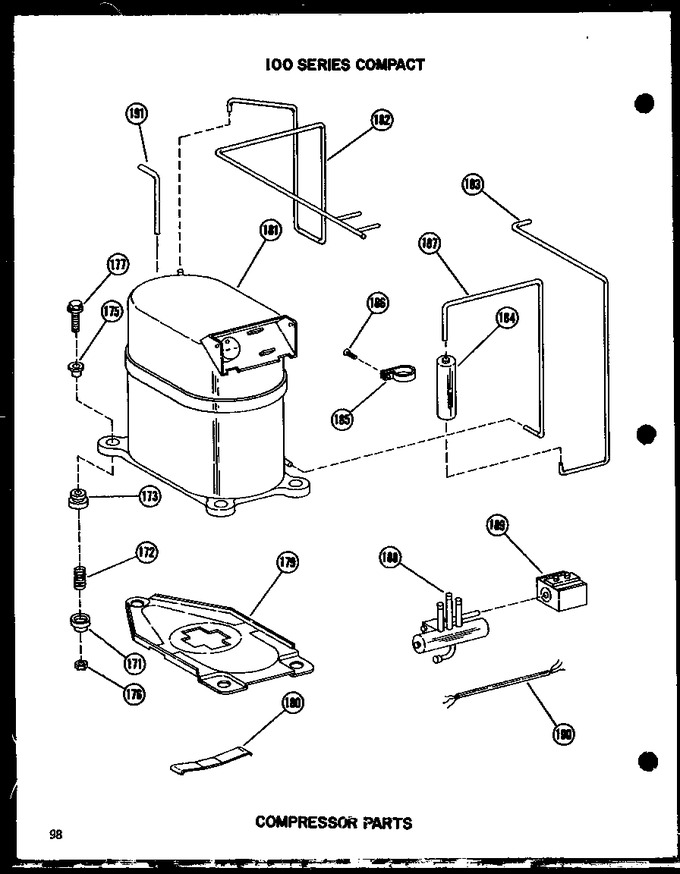

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 171 | A4695202 | Grommet |
|
- | |||||
| 172 | A4697401 | Spring-red |
|
- | |||||
| 172 | A4697501 | Spring-red |
|
- | |||||
| 173 | A4695101 | Grommet |
|
- | |||||
| 175 | A3306201 | Sleeve-tee |
|
- | |||||
| 176 | A3306301 | Nut |
|
- | |||||
| 177 | A4695702 | Bolt-comp Mtg |
|
- | |||||
| 181 | D5337103 | Compressor, Tecumseh, Aj5512f, |
|
- | |||||
| 182 | B5137403 | Tube-valve To Evap |
|
- | |||||
| 182 | C5814302 | Tube-suction |
|
- | |||||
| 183 | B1114901 | Tube-discharge |
|
- | |||||
| 183 | B5132805 | Tube-discharge |
|
- | |||||
| 184 | C5885806 | Muffler |
|
- | |||||
| 185 | A4696504 | Muffler Clamp Assy |
|
- | |||||
| 186 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 187 | C5892501 | Tube-discharge |
|
- | |||||
| 188 | B4150401 | Valve Assembly, Reversing, Ran |
|
- | |||||
| 189 | B5108902 | Assembly, Solenoid Coil, Ranco |
|
- | |||||
| 190 | B5134107 | Wiring Harness |
|
- |
