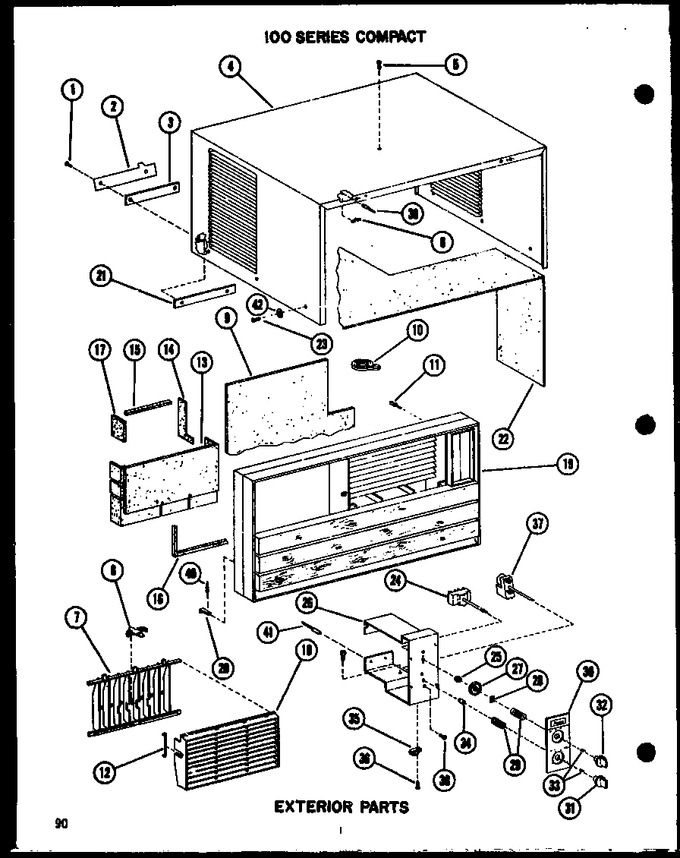

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0211517 | Screw |
|
- | |||||
| 2 | B4115501 | Nameplate |
|
- | |||||
| 3 | A4085001 | Backer Plate |
|
- | |||||
| 4 | C5215704 | Outer Case Weld |
|
- | |||||
| 5 | M0219233 | Screw |
|
- | |||||
| 6 | M0100306 | Clip |
|
- | |||||
| 7 | D5432801 | Air Deflector Vert |
|
- | |||||
| 8 | B5183001 | Slide |
|
- | |||||
| 9 | B5183301 | Filter, Air Inlet |
|
- | |||||
| 10 | A4542805 | Retainer |
|
- | |||||
| 11 | A4680401 | Strike |
|
- | |||||
| 12 | M0117501 | Spring Tension |
|
- | |||||
| 13 | D5444901 | Insulation |
|
- | |||||
| 14 | A4672601 | Gasket |
|
- | |||||
| 15 | A4672501 | Gasket |
|
- | |||||
| 16 | A4672503 | Gasket |
|
- | |||||
| 17 | A4672701 | Gasket |
|
- | |||||
| 18 | D5432704 | Louver Box |
|
- | |||||
| 19 | D5432904 | Front Assy |
|
- | |||||
| 20 | A4564801 | Hook |
|
- | |||||
| 21 | A4588701 | Tap Strip |
|
- | |||||
| 22 | C5889401 | Insulation |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: M0211631) |
|
Immediately | $ 14.72 | ||||
| 24 | B4170306 | Switch |
|
- | |||||
| 25 | M0289601 | Palnut |
|
- | |||||
| 26 | C5298302 | Control Bracket |
|
- | |||||
| 27 | C5211801 | Cam |
|
- | |||||
| 28 | M0287706 | Nut |
|
- | |||||
| 29 | A4663603 | Spring |
|
- | |||||
| 30 | C5885001 | Escutcheon-control |
|
- | |||||
| 31 | D7009805 | Knob K |
|
- | |||||
| 32 | D7009806 | Knob |
|
- | |||||
| 33 | YM0115901 | Clip, Knob Mounting |
|
- | |||||
| 34 | A3073601 | Bushing |
|
- | |||||
| 35 | M0102101 | Clamp |
|
- | |||||
| 36 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 37 | B4795302 | Thermostat |
|
- | |||||
| 38 | M0232012 | Screw |
|
- | |||||
| 39 | A4539603 | Pop Rivet |
|
- | |||||
| 40 | A4539602 | Pop Rivet |
|
- | |||||
| 41 | A4539601 | Pop Rivet |
|
- | |||||
| 42 | M0272402 | Lock Washer |
|
- |
