Diagram # Part Number Description Series Availability Ships Price Add to Cart
50 B4778001 Spring Appelez-nous -
51 B5107609 Gasket Appelez-nous -
52 A4624301 Retainer Appelez-nous -
53 B5131401 Wldmt,damper Door Appelez-nous -
54 A4608604 Rod-damper Door Appelez-nous -
55 M0114001 Speed Clip Appelez-nous -
56 B5150301 Wiring Harness Appelez-nous -
57 A3030302 Gasket Appelez-nous -
58 M0102303 Clamp Appelez-nous -
59 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

60 A3023301 Grommet Appelez-nous -
61 B5100401 Grommet Appelez-nous -
62 D5413106 Base Pan Wldmt Appelez-nous -
63 D5376602 Insulation Appelez-nous -
64 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

65 A4600901 Insulation Appelez-nous -
66 A4573601 Support Appelez-nous -
67 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

68 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

69 B5126201 Baffle Appelez-nous -
70 D5351201 Weld Evap Scroll Appelez-nous -
71 D5318801 Blower Wheel Appelez-nous -
72 C5258002 Filler Block Appelez-nous -
73 C5259201 Inlet Ring Appelez-nous -
74 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

75 M0102310 Clamp, Wiring Appelez-nous -
76 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

77 C5298201 Shield Appelez-nous -
78 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

79 A3030303 Gasket (per Foot) Appelez-nous -
80 WP210720 Pop Rivets   (Replaces: A4539605) Special Order $ 14.16

81 M0102302 Clamp, Tube Appelez-nous -
82 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

83 C5958701 Blower Guard Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

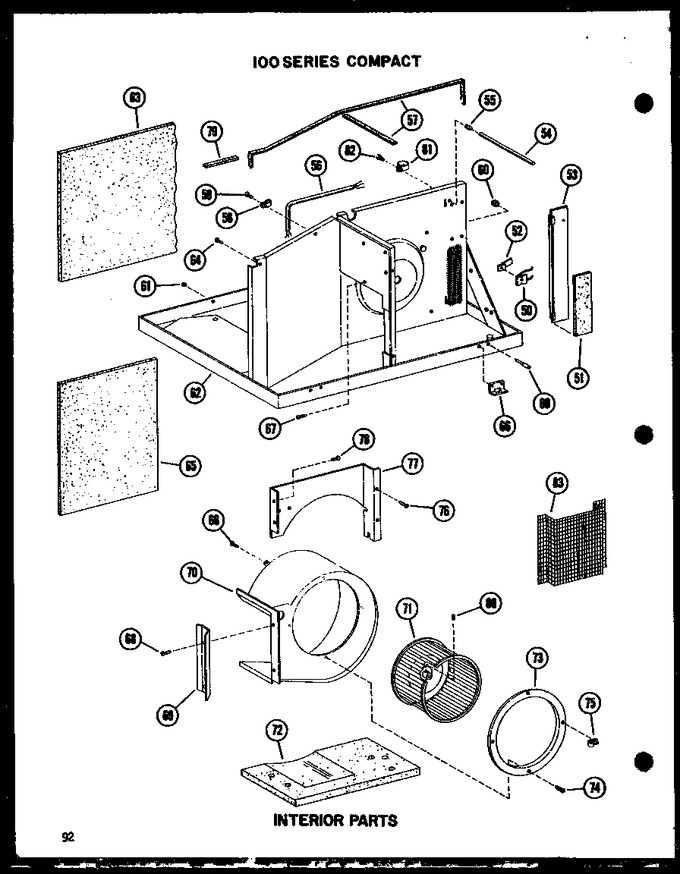

Diagram for 109-5JH (BOM: P5433665R)
