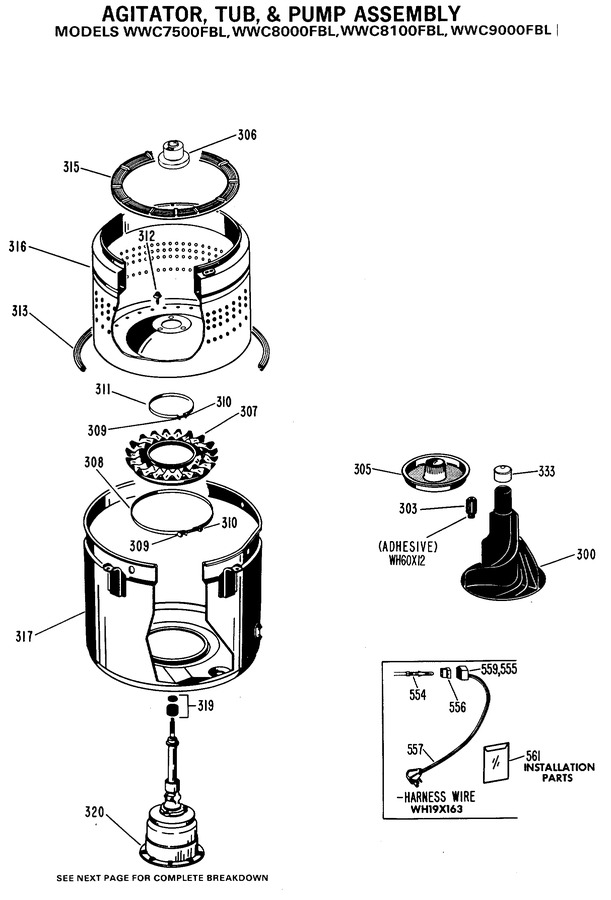

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 | WH43X87 | Agitator & Coupling Wh |
|
- | |||||
| 303 | WH1X1944 | Coupling Asm Agitator |
|
- | |||||
| 305 | WH1X2269 | Filter Recirc Wh |
|
- | |||||
| 306 | WH8X292 | Boot Hub |
|
- | |||||
| 307 | WH8X246 | Boot Mech |
|
- | |||||
| 308 | WH1X1580 | Clamp Asm |
|
- | |||||
| 309 | WH2X935 | Scr |
|
- | |||||
| 310 | WH2X936 | Nut |
|
- | |||||
| 311 | WH1X1292 | Clamp Asm |
|
$ 6.25 | |||||
| 312 | WH2X681 | Scr 5/16-18 Hx 7/8 S |
|
- | |||||
| 313 | WG04L01700 | Gasket Tub (Replaces: WH8X305) |
|
$ 15.96 | |||||
| 315 | WH42X1062 | Retainer Clothes |
|
$ 25.01 | |||||
| 316 | WH45X103 | Basket Asm Std Capacity |
|
- | |||||
| 317 | WH45X69 | Tub Asm |
|
- | |||||
| 319 | WG04A01311 | Support Agitator (Replaces: WH1X1986) |
|
Immediately | $ 4.65 | ||||
| 320 | WH38X38 | Transmission Asm Std Cap |
|
- | |||||
| 333 | WH43X89 | Cap Agitator |
|
$ 56.86 | |||||
| 554 | WB17X5054 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 561 | WH49X263 | Pk Pack Asm Installation |
|
- |
