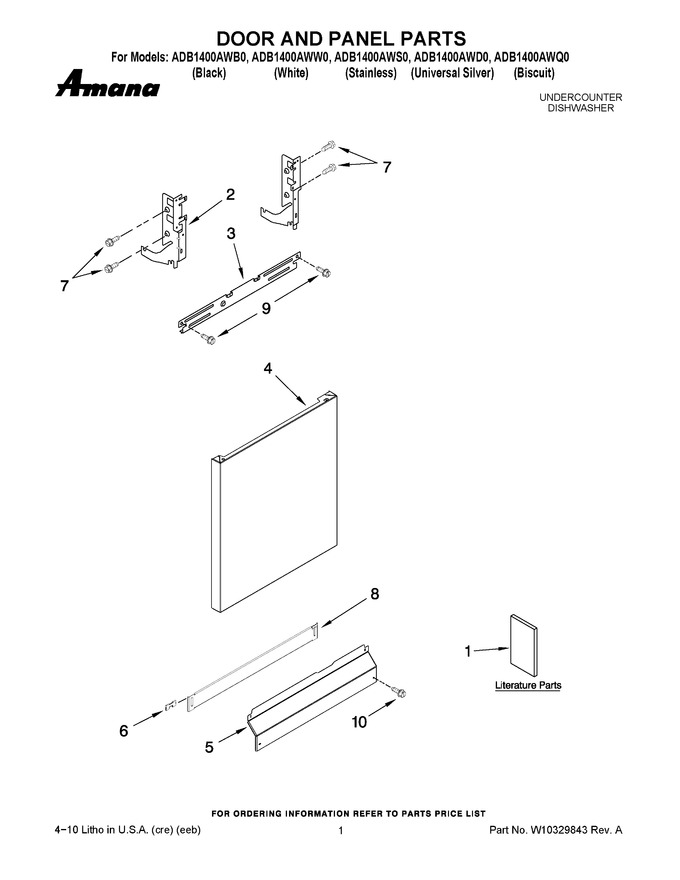

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310516		Guide, Use & Care Spanish		Appelez-nous	-
1	W10275468		Tech Sheet		Appelez-nous	-
1	W10282553		Instructions,installation		Appelez-nous	-
1	W10310515		Guide, Use & Care English/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 130.98
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	W10428852		Panel Front (white)   (Replaces: W10274846)				$ 346.98
4	W10301571		Panel Front (black)   (Replaces: W10274845)				$ 357.77
4	W10384707		Panel Front (biscuit)   (Replaces: W10274847)				$ 312.47
5	W11763736		Access Panel (black)   (Replaces: 8573255)			Immediately	$ 38.79
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 162.80
5	W10871198		Access Panel (biscuit)   (Replaces: 8573257)				$ 147.59
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 10.68
7	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00
8	WP8573287		Toe Panel (includes Item 9) (white)   (Replaces: 8573287)				$ 165.12
8	8573288		Toe Panel (includes Item 9) (biscuit)				$ 67.15
8	W10871196		Toe Panel (includes Item 9) (black)   (Replaces: 8573286)				$ 165.75
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
10	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 7.75
