Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10321540 Console Asm.(includes Active Overlay & Insert) (black) Appelez-nous -
1 W10321541 Console Asm.(includes Active Overlay & Insert) (white) Appelez-nous -
1 W10321542 Console Asm.(includes Active Overlay & Insert) (biscuit) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 W11202742 Control Electronic   (Replaces: W10298340) Special Order $ 177.44

4 WP8269209 Switch, Door   (Replaces: 8269209) In-Stock Immediately $ 41.24

5 8269333 Latch Assembly Special Order $ 16.02

6 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

7 WP3400412 Screw   (Replaces: 3400412) In-Stock Immediately $ 7.56

8 WP8269323 Handle, Latch (black)   (Replaces: 8269323) Special Order $ 125.97

8 WP8269323 Handle, Latch (white)   (Replaces: 8269324) Special Order $ 125.97

8 WP8269323 Handle, Latch (biscuit)   (Replaces: 8269326) Special Order $ 125.97

9 W10158350 Cover, Control Shield Assy Special Order $ 26.50


    View Diagram in Separate Window     Print Icon   Print Part List

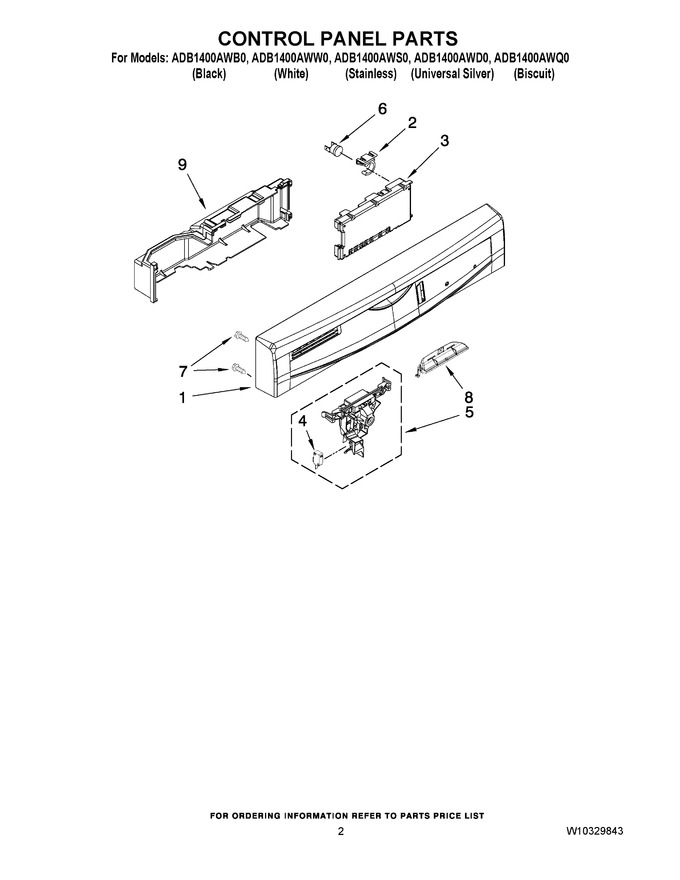

Diagram for ADB1400AWW0
