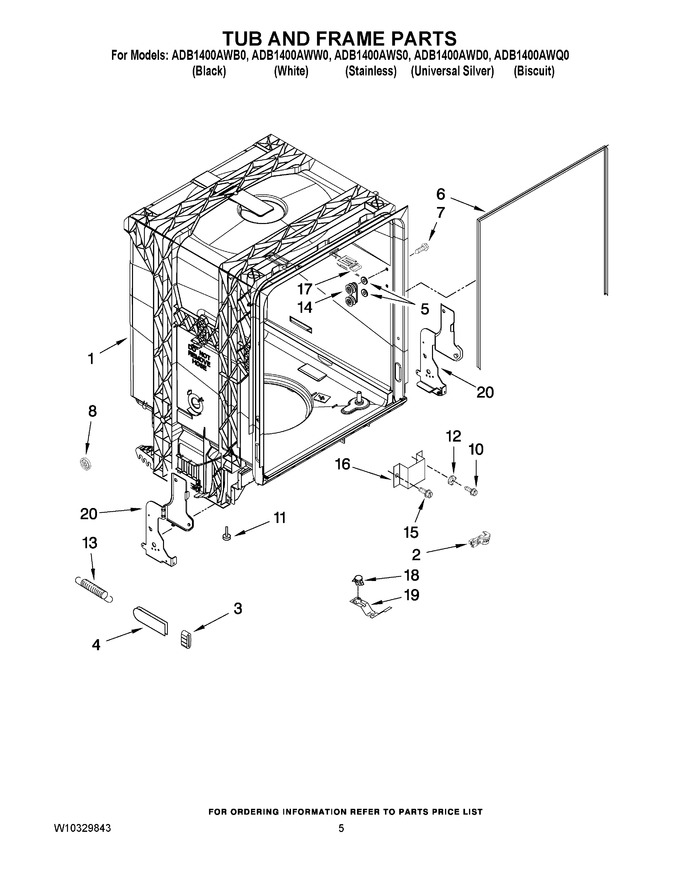

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10413848 | Tub Assembly (includes Heater Assembly) (Replaces: W10254860) |
|
$ 501.73 | |||||
| 2 | W11384788 | Strain Relief (Replaces: 8573061) |
|
$ 21.51 | |||||
| 3 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 4 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 5 | WP9743002 | Gasket, Bracket Mounting (Replaces: 9743002) |
|
Immediately | $ 9.56 | ||||
| 6 | W10542314 | Seal, Cabinet (Replaces: 8268888) |
|
Immediately | $ 97.26 | ||||
| 7 | W10817436 | Screw (Replaces: 8533836) |
|
Immediately | $ 7.74 | ||||
| 8 | WP8269831 | Wheel Leg (Replaces: 8269831) |
|
$ 7.52 | |||||
| 10 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 7.75 | |||||
| 11 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 84.72 | ||||
| 12 | WP3378128 | Washer, Pronged (Replaces: 3378128) |
|
$ 9.03 | |||||
| 13 | WPW10337934 | Spring, Door Balance (Replaces: 8524473) |
|
Immediately | $ 34.61 | ||||
| 14 | WP8270016 | Wheel & Mount Assembly (also Order Item 5) (Replaces: 8270016) |
|
$ 84.61 | |||||
| 15 | WP3400892 | Screw, (Replaces: 3400892) |
|
$ 7.75 | |||||
| 16 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 17 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 18 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 19 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 19.18 | |||||
| 20 | W10185369 | Hinge Bracket (includes Item 14) (right) |
|
- | |||||
| 20 | W10185368 | Hinge Bracket (includes Item 14) (left) |
|
- |
