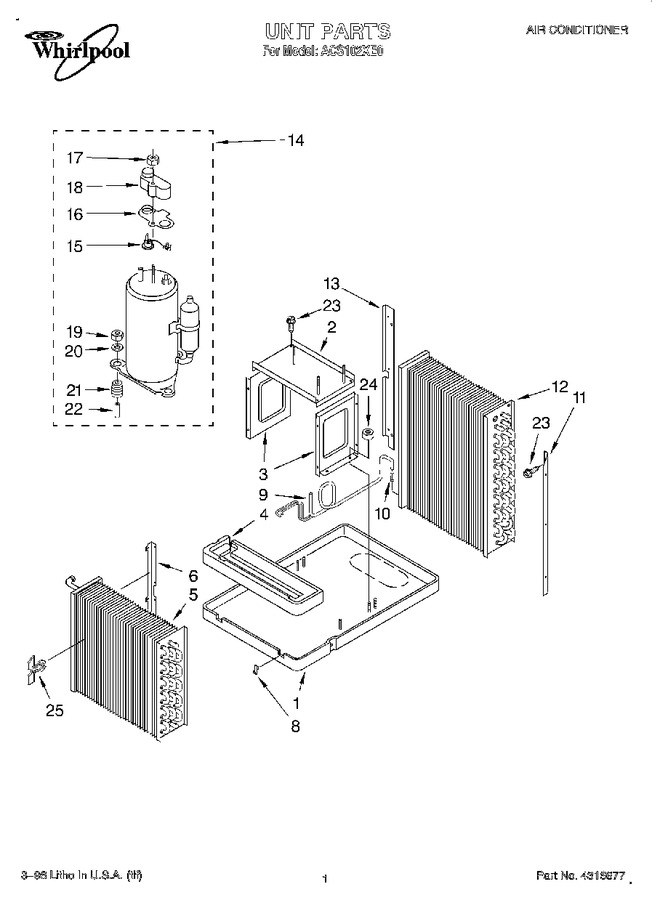

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789719		Base		Appelez-nous	-
2	789721		Bracket, Comp. Mounting		Appelez-nous	-
3	789723		Support, Bracket (2)		Appelez-nous	-
4	789724		Pan, Drain (evaporator)		Appelez-nous	-
5	789726		Evaporator		Appelez-nous	-
6	789727		Bracket, Baffle (evaporator)		Appelez-nous	-
8	789728		Clip, Front Retainer		Appelez-nous	-
9	789730		Tube, Restrictor .042 I.d. X 20`` (2)		Appelez-nous	-
10	789673		Strainer		Appelez-nous	-
11	789731		Baffle, Condenser		Appelez-nous	-
12	789733		Condenser		Appelez-nous	-
13	789734		Bracket, Condenser Shroud		Appelez-nous	-
14	789650		Compressor		Appelez-nous	-
15	789653		Overload		Appelez-nous	-
16	789656		Gasket, Terminal Cover		Appelez-nous	-
17	789660		Nut, Terminal Cover		Appelez-nous	-
18	789658		Cover, Terminal		Appelez-nous	-
19	789661		Nut		Appelez-nous	-
20	789662		Washer		Appelez-nous	-
21	789664		Grommet		Appelez-nous	-
22	789665		Sleeve		Appelez-nous	-
23	4389654		Screw No.8 X 3/8				$ 13.89
24	789743		Nut, 1/4-20 Lock		Appelez-nous	-
25	789628		Clip, Thermostat Bulb		Appelez-nous	-
	LIT789601		Use And Care Guide		Appelez-nous	-
	LIT789604		Tech Sheet		Appelez-nous	-
