SELECT A DIAGRAM

01 - Unit, Literature


02 - Airflow And Control


03 - Cabinet


04 - Installation Parts

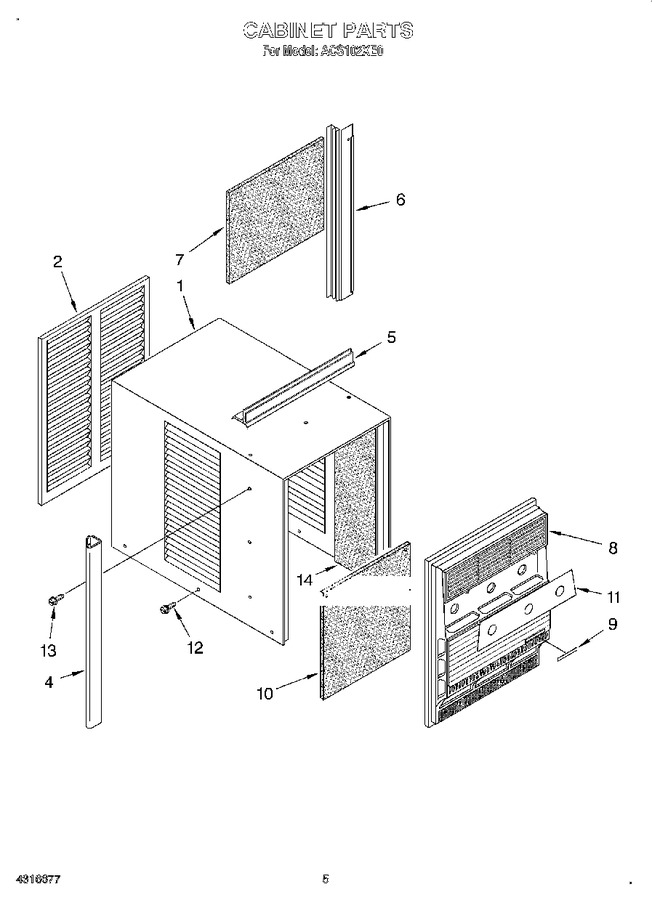

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789679		Cabinet Assembly (includes Insulation And Nos. 2 And 5)		Appelez-nous	-
2	789680		Panel, Rear		Appelez-nous	-
4	789681		Retainer, Side (cabinet) (2)		Appelez-nous	-
5	789682		Retainer, Top (cabinet)		Appelez-nous	-
6	789683		Retainer, Panel (side) (2)		Appelez-nous	-
7	789684		Panel, Filler		Appelez-nous	-
8	789685		Front Assembly (also Order Nos. 9 And 11)		Appelez-nous	-
9	789686		Nameplate		Appelez-nous	-
10	789707		Filter, Air		Appelez-nous	-
11	789696		Escutcheon		Appelez-nous	-
12	3148443		Screw No.8 X 1/4 Hex		Appelez-nous	-
13	4389654		Screw No.8 X 3/8 Hex				$ 13.89
14	789746		Insulation, Cab. (side) (2 Required)		Appelez-nous	-
14	789747		Insulation, Cab. (top)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
