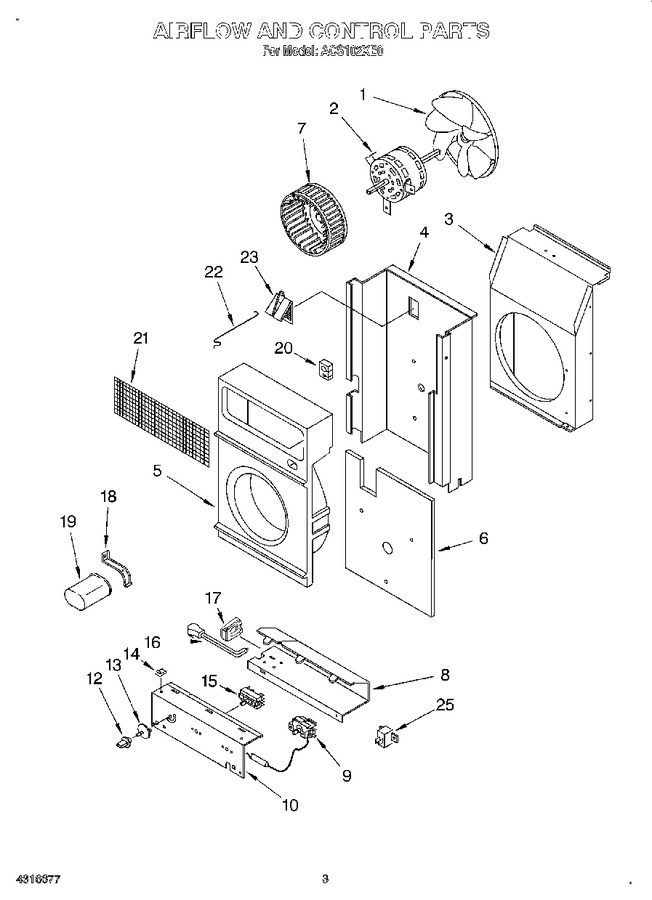

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789697		Blade, Fan		Appelez-nous	-
2	789699		Motor, Fan		Appelez-nous	-
3	789700		Shroud, Condenser		Appelez-nous	-
4	789701		Wall, Dividing		Appelez-nous	-
5	789702		Housing, Blower		Appelez-nous	-
6	789703		Insulation, Dividing Wall		Appelez-nous	-
7	789704		Wheel, Blower		Appelez-nous	-
8	789705		Box, Control		Appelez-nous	-
9	789627		Thermostat		Appelez-nous	-
10	789706		Cover, Control Box		Appelez-nous	-
12	789708		Knob (3)		Appelez-nous	-
13	789709		Actuator, Exhaust Door		Appelez-nous	-
14	789710		Clip, Front Retainer		Appelez-nous	-
15	789711		Switch, Rotary		Appelez-nous	-
16	789625		Cord, Power		Appelez-nous	-
17	789624		Relief, Strain		Appelez-nous	-
18	789713		Strap, Capacitor		Appelez-nous	-
19	789615		Capacitor		Appelez-nous	-
20	789716		Grommet (tube)		Appelez-nous	-
21	789717		Screen, Air Discharge		Appelez-nous	-
22	789718		Wire, Control		Appelez-nous	-
23	789635		Door, Exhaust		Appelez-nous	-
25	789633		Assist, Start		Appelez-nous	-
