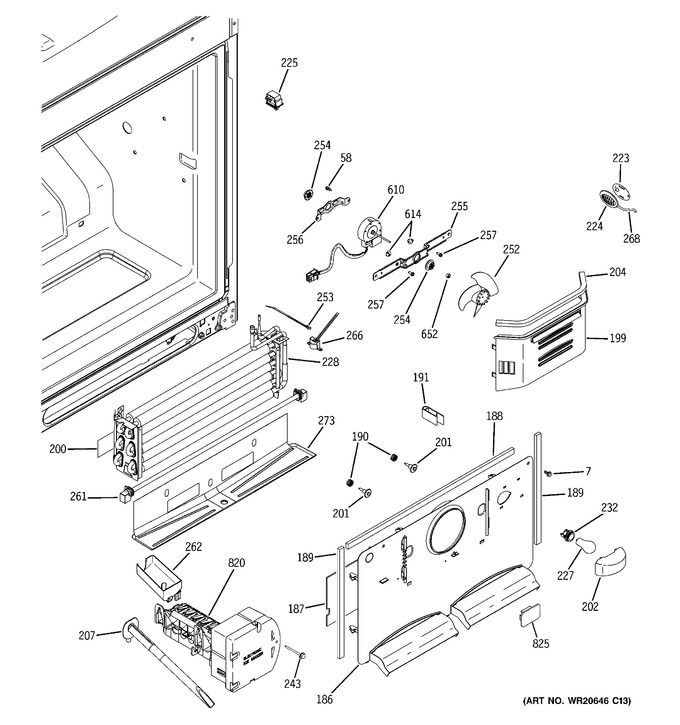

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts
7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WR01X10612 | Scr 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 58 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 186 | WR17X12816 | Cover Evap |
|
- | |||||
| 187 | WR14X10260 | Foam Cover Evap |
|
- | |||||
| 188 | WR14X10261 | Foam Strip Se Adh |
|
- | |||||
| 189 | WR14X10262 | Foam Strip Se Adh |
|
- | |||||
| 190 | WR17X12252 | Grommet Evap Fan |
|
- | |||||
| 191 | WG03A00749 | Clamp Tube (Replaces: WR02X10522) |
|
$ 9.25 | |||||
| 199 | WR17X12575 | Cover Evap Fan |
|
- | |||||
| 200 | WR14X10267 | Harness Insulation |
|
- | |||||
| 201 | WR01X10685 | Scr 8-18 Ab Ihw |
|
- | |||||
| 202 | WR01L04383 | Shield Light Fz (Replaces: WR02X13315) |
|
$ 12.60 | |||||
| 204 | WR14X10264 | Foam Strip Se Adh |
|
- | |||||
| 207 | WR17X12788 | Grommet And Tube Asm |
|
- | |||||
| 223 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 224 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 225 | WG03F05844 | Switch Light (Replaces: WR23X10179) |
|
Immediately | $ 65.21 | ||||
| 227 | WR02X12328 | Lamp |
|
- | |||||
| 228 | WR01F01768 | Low Side Asm (Replaces: WR85X10107) |
|
$ 88.36 | |||||
| 232 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 8.34 | |||||
| 243 | WR01X10626 | Scr 8-18 Ab Hxw 5/4 S |
|
- | |||||
| 252 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 253 | WR02X11607 | Wire Tie |
|
- | |||||
| 254 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 255 | WR17X12507 | Bracket Fan Evap Front |
|
- | |||||
| 256 | WR02X10764 | Bracket Evap Fan Btm |
|
- | |||||
| 257 | WR01X10620 | Scr 10-32 Ca Hxws 9/16 S |
|
- | |||||
| 261 | WR01F00992 | Heater Def Asm (Replaces: WR51X10108) |
|
Immediately | $ 52.94 | ||||
| 262 | WR01L01185 | Cup Fill Im (Replaces: WR29X10064) |
|
$ 10.52 | |||||
| 266 | WG03F00616 | Defrost Thermostat (Replaces: WR50X10028) |
|
Immediately | $ 72.50 | ||||
| 268 | WR55X10026 | Sensor Temp Fz |
|
- | |||||
| 273 | WR17X12506 | Trough Drain Asm |
|
- | |||||
| 610 | WR01F05069 | Motor Dc Evap Fan Asm (Replaces: WR60X10277) |
|
Immediately | $ 94.54 | ||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 820 | WR30X10139 | Icemaker Asm |
|
- | |||||
| 825 | WR02X13245 | Plug Evap Cover |
|
- |
