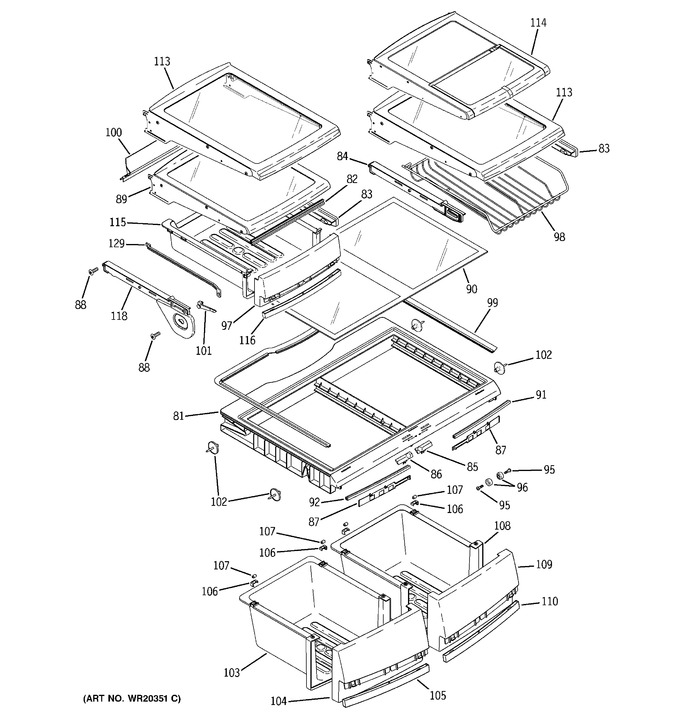

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 81 | WR01L02805 | Frame Cover Veg Pan (Replaces: WR32X10791) |
|
Immediately | $ 106.28 | ||||
| 82 | WR14X10281 | Gasket Front Vp |
|
- | |||||
| 83 | WR01A00212 | Slide Pan Rh (Replaces: WR72X10072) |
|
Immediately | $ 66.76 | ||||
| 84 | WR01A00213 | Slide Pan Lh (Replaces: WR72X10073) |
|
Immediately | $ 44.46 | ||||
| 85 | WR01F00500 | Slide Control (Replaces: WR17X12586) |
|
$ 4.20 | |||||
| 86 | WR01F00501 | Slide Control (Replaces: WR17X12587) |
|
$ 3.97 | |||||
| 87 | WR01L02103 | Gasket Pan Crv Rear (Replaces: WR14X10280) |
|
$ 4.17 | |||||
| 88 | WR01A01044 | Scr 8-18 Dg Trt20 5/8 S (Replaces: WR01X10621) |
|
$ 15.88 | |||||
| 89 | WR71X10896 | Shelf Fixed & Cant Asm |
|
- | |||||
| 90 | WR32X10699 | Glass Cover Veg Pan |
|
- | |||||
| 91 | WR01F01711 | Damper (Replaces: WR17X12588) |
|
$ 5.36 | |||||
| 92 | WR17X12589 | Damper |
|
- | |||||
| 95 | WR01F01728 | Wheel Pan Cover (Replaces: WR01X10209) |
|
$ 3.97 | |||||
| 96 | WR01X10583 | Scr 10-16 |
|
- | |||||
| 97 | WR01L04647 | Window Deli Pan (Replaces: WR32X10705) |
|
$ 22.23 | |||||
| 98 | WR21X10185 | Wire Can Dispenser |
|
- | |||||
| 99 | WR17X12579 | Gasket Cover Veg |
|
- | |||||
| 100 | WR01F00620 | Damper (Replaces: WR09X10174) |
|
$ 14.29 | |||||
| 101 | WR01F00438 | Control (Replaces: WR71X10828) |
|
Immediately | $ 5.96 | ||||
| 102 | WR01A00975 | Support Veg Pan Asm (Replaces: WR02X12373) |
|
Immediately | $ 4.76 | ||||
| 103 | WR01L00470 | Body Veg Pan (Replaces: WR32X10701) |
|
$ 65.21 | |||||
| 104 | WR32X10704 | Window Veg Pan |
|
- | |||||
| 105 | WR17X12789 | Handle Veg Pan |
|
- | |||||
| 106 | WR01A00626 | Roller Pan (Replaces: WR02X12902) |
|
$ 3.97 | |||||
| 107 | WR02X12901 | Cover Roller Pan |
|
- | |||||
| 108 | WR01L00468 | Body Veg Pan (Replaces: WR32X10700) |
|
Immediately | $ 66.10 | ||||
| 109 | WR32X10703 | Window Veg Pan |
|
- | |||||
| 110 | WR01L02429 | Handle Veg Pan (Replaces: WR17X12790) |
|
$ 11.14 | |||||
| 113 | WR71X10897 | Shelf Slideout Cant Asm |
|
- | |||||
| 114 | WR01F01896 | Tuckaway Asm (Replaces: WR72X10346) |
|
$ 116.91 | |||||
| 115 | WR01L02842 | Deli Pan (Replaces: WR72X10309) |
|
Immediately | $ 85.41 | ||||
| 116 | WR01L02361 | Handle Deli Pan (Replaces: WR17X12791) |
|
Immediately | $ 17.47 | ||||
| 118 | WR01A00817 | Slide Meat Pan (Replaces: WR72X10316) |
|
Immediately | $ 27.72 | ||||
| 129 | WR02X12890 | Linkage Pan Deli |
|
- |
