SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts

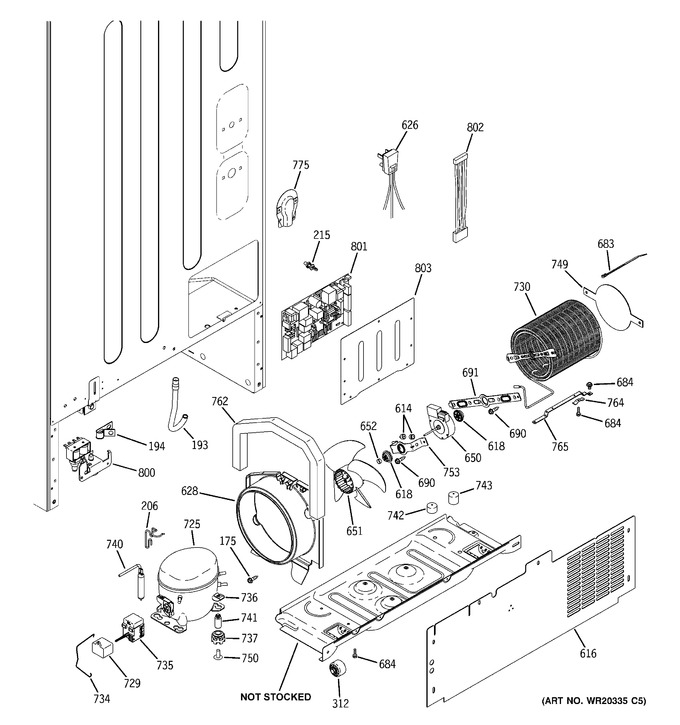

7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 193 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 36.53 | ||||
| 194 | WR01X10684 | Clamp Cable |
|
- | |||||
| 206 | WR02X12377 | Clip Drain Tube |
|
- | |||||
| 215 | WR02X10663 | Stand Off |
|
- | |||||
| 312 | WR02X12288 | Mobility Back Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR82X10110 | Cover Access |
|
- | |||||
| 618 | WR01A00315 | Grommet Cond Fan (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 684 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10098 | Comp. Repl. Kit R134a |
|
- | |||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 17.17 | ||||
| 730 | WR01F02892 | Condenser Assembly (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 734 | WR02X13140 | Clip Retainer Combo |
|
- | |||||
| 735 | WG03F01425 | Combo Device Tsd-2 (Replaces: WR08X10111) |
|
Immediately | $ 55.98 | ||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 742 | WR02X10587 | Support Condenser |
|
- | |||||
| 743 | WR02X10588 | Support Condenser |
|
- | |||||
| 749 | WR17X12508 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X10796 | Cover Water Line |
|
- | |||||
| 800 | WR57X10040 | Water Valve |
|
$ 71.10 | |||||
| 801 | WR01F00233 | Board Asm Main Control (Replaces: WR55X10996) |
|
Immediately | $ 205.15 | ||||
| 802 | WR23X10510 | Harness Board Indiv |
|
- | |||||
| 803 | WR02X12027 | Cover Main Board Asm |
|
- | |||||
| WR01F00233 | Board Asm Main Control |
|
Immediately | $ 205.15 | |||||
| WR01F00629 | Damper Duct Motorized Asm |
|
Immediately | $ 62.73 | |||||
| WR01F01730 | Capteur |
|
Immediately | $ 16.29 | |||||
| WR01F01768 | Evaporateur Asm |
|
$ 88.36 | ||||||
| WG03F00133 | Compressor Kit Charged |
|
Immediately | $ 1,045.82 | |||||
| WR01L02128 | Gasket French (grey) |
|
Immediately | $ 143.14 | |||||
| WR01L02772 | Lentille Plaque Marque |
|
$ 12.31 | ||||||
| WR01L04502 | Trim Basket |
|
$ 13.22 | ||||||
| WR01L02083 | Joint |
|
$ 124.81 | ||||||
| WG03A03157 | Deshydrateur (Replaces: WG03F00245) |
|
Immediately | $ 153.40 | |||||
| WG03F00417 | Machine A Glacons |
|
Immediately | $ 207.39 | |||||
| WG04F11911 | Valve (Replaces: WG03F00685) |
|
Immediately | $ 123.62 | |||||
| WG03F01425 | Surcharge |
|
Immediately | $ 55.98 | |||||
| WR01A00386 | Meneau Bl G |
|
$ 203.90 |
