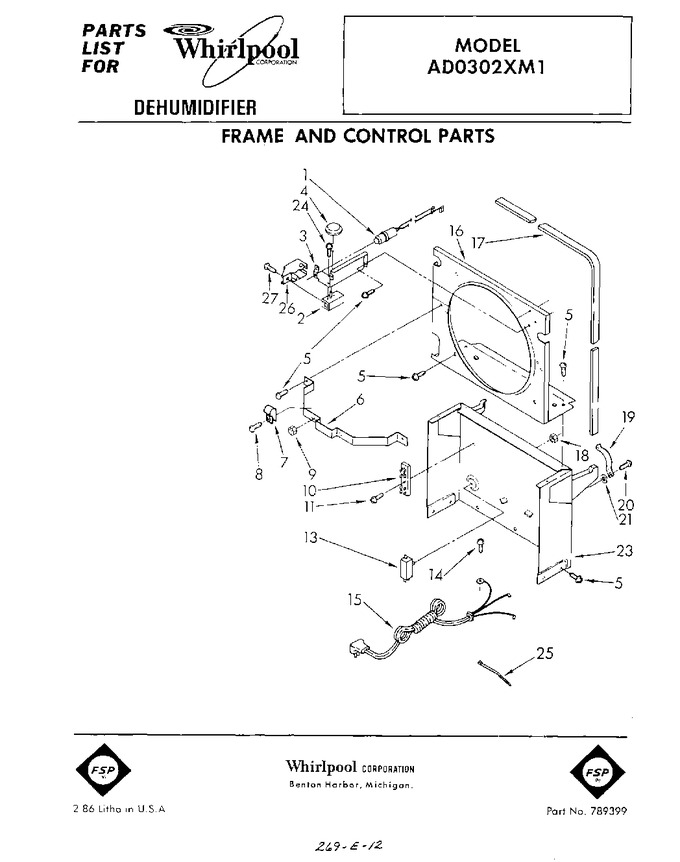

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950747		Light, Indicator		Appelez-nous	-
2	951280		Humidistat Assembly		Appelez-nous	-
3	951285		Bracket, Humidistat		Appelez-nous	-
4	998859		Knob, Humidistat Control		Appelez-nous	-
5	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
6	998777		Bracket, Fan Motor Mounting		Appelez-nous	-
7	488946		Clamp, Tube				$ 20.45
8	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.79
9	WP488130		Nut, Fan Motor 8-32 (2)   (Replaces: 488130)				$ 6.97
10	950431		Board, Terminal		Appelez-nous	-
11	488966		Screw, 6 X 3/8		Appelez-nous	-
13	998783		Switch, Water Level Control		Appelez-nous	-
14	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.43
15	950743		Cord, Appliance		Appelez-nous	-
16	998779		Plate, Orifice		Appelez-nous	-
17	998802		Seal		Appelez-nous	-
18	489001		Palnut, 3/8-32		Appelez-nous	-
19	949408		Spring, Water Level		Appelez-nous	-
20	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.86
21	489029		Washer (repair) (.062 Thickness)		Appelez-nous	-
21	489091		Washer (repair) (.091 Thickness)		Appelez-nous	-
21	489083		Washer, Repair (.045 Thickness)		Appelez-nous	-
23	998729		Support		Appelez-nous	-
24	WP488234		Screw, Mach 8-32 X 5/32 (2)   (Replaces: 489064)				$ 6.74
25	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.90
26	951281		Cover, Terminal		Appelez-nous	-
27	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.74
