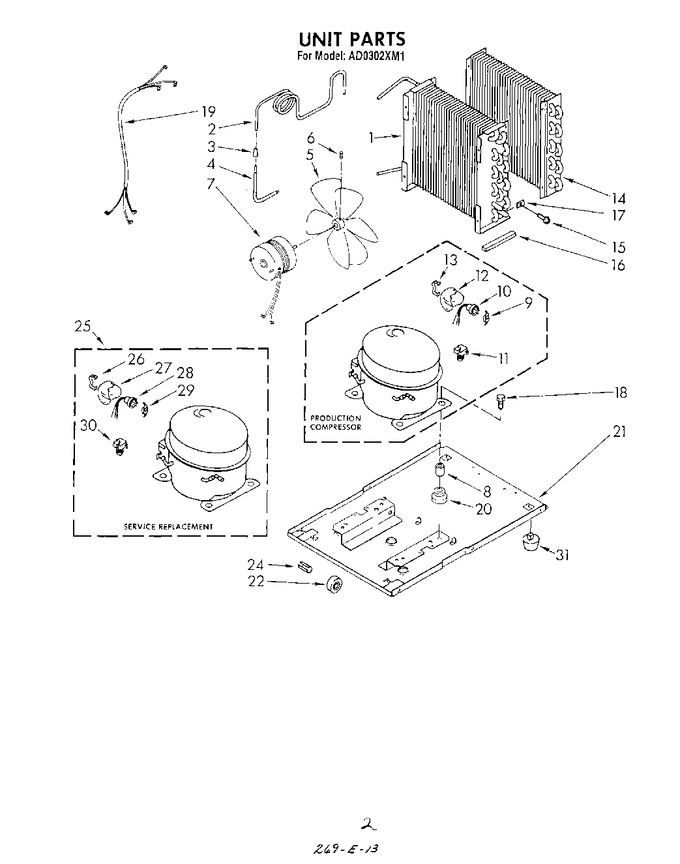

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949916		Condenser		Appelez-nous	-
2	948795		Tube, Restrictor (length 31.75``)		Appelez-nous	-
3	474013		Strainer, Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes No.3)		Appelez-nous	-
5	948756		Blade, Fan (includes No.6)		Appelez-nous	-
6	488035		Setscrew, 1/4-24 X 5/16		Appelez-nous	-
7	949635		Motor, Fan		Appelez-nous	-
8	646498		Sleeve (4)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	950057		Overload, Protector		Appelez-nous	-
11	950058		Relay, Start		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	998746		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	998867		Seal		Appelez-nous	-
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	950359		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
24	489015		Pin, Roller (2)		Appelez-nous	-
25	876684		Compressor, Service (complete Assembly)		Appelez-nous	-
26	831282		Retainer, Cover		Appelez-nous	-
27	865068		Cover, Terminal		Appelez-nous	-
28	876686		Overload		Appelez-nous	-
29	549086		Spring, Overload		Appelez-nous	-
30	876689		Relay		Appelez-nous	-
31	951886		Glide (2)		Appelez-nous	-
