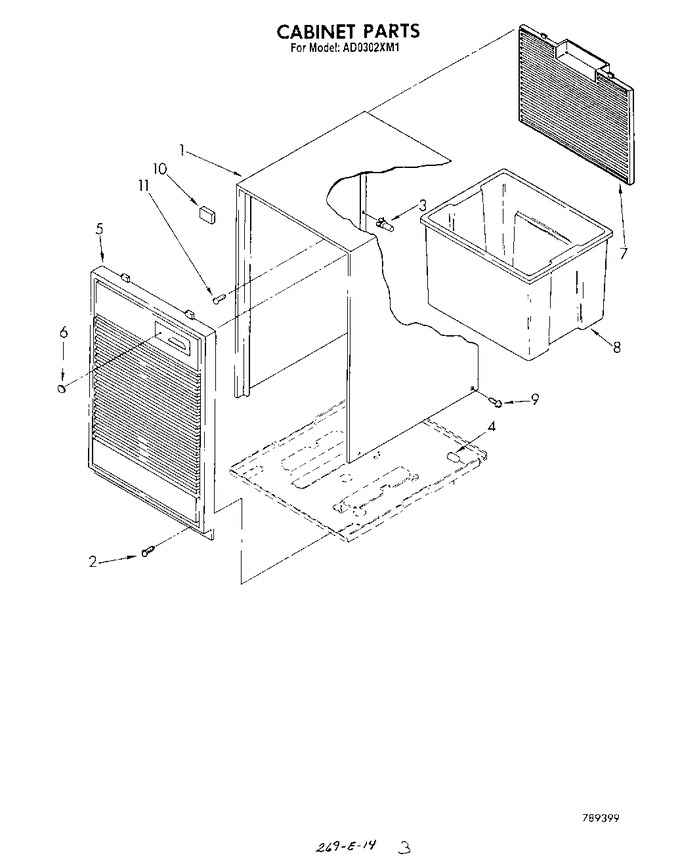

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998821		Cabinet		Appelez-nous	-
2	WPW10141625		Screw, No.8-32 X 3/8 (2)   (Replaces: 489104)				$ 21.16
3	998813		Retainer Pin (rear Grille)		Appelez-nous	-
4	998869		Cap, Thread		Appelez-nous	-
5	950269		Grille, Front		Appelez-nous	-
6	998846		Lens, Light		Appelez-nous	-
7	998832		Grille, Rear		Appelez-nous	-
8	951901		Pan, Condensate				$ 80.76
9	489016		Screw, 8-32 X 3/8 (6)		Appelez-nous	-
10	948584		Spacer, Grille		Appelez-nous	-
11	WP16123		Washer, Cap (condensate Pan)   (Replaces: 647338)				$ 7.70
11	978028		1/2`` Tube O.d.		Appelez-nous	-
11	978029		5/8`` Tube O.d.				$ 93.85
11	978030		3/4`` Tube O.d.				$ 130.71
11	978865		Seal, Ring (access Valve) (20 - Pack)		Appelez-nous	-
11	WP488729		Screw, 8 X 3/8 (2)   (Replaces: 489073)			Immediately	$ 7.79
11	646753		Cap, Condensate Pan		Appelez-nous	-
11	WP978025		1/4`` Tube O.d.   (Replaces: 978025)			Immediately	$ 105.25
11	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
11	484310		Epoxy, Tube (aluminum Repair)		Appelez-nous	-
11	505168		Tape, No Drip Valve, Access		Appelez-nous	-
11	978026		5/16``tube O.d.			Immediately	$ 128.09
11	SF5538		3/8`` Tube O.d.   (Replaces: 978027)				$ 21.64
	LIT789399		List, Repair Parts		Appelez-nous	-
	LIT952622		Guide, Use & Care		Appelez-nous	-
	LIT951037		Sheet, Tech Tech		Appelez-nous	-
