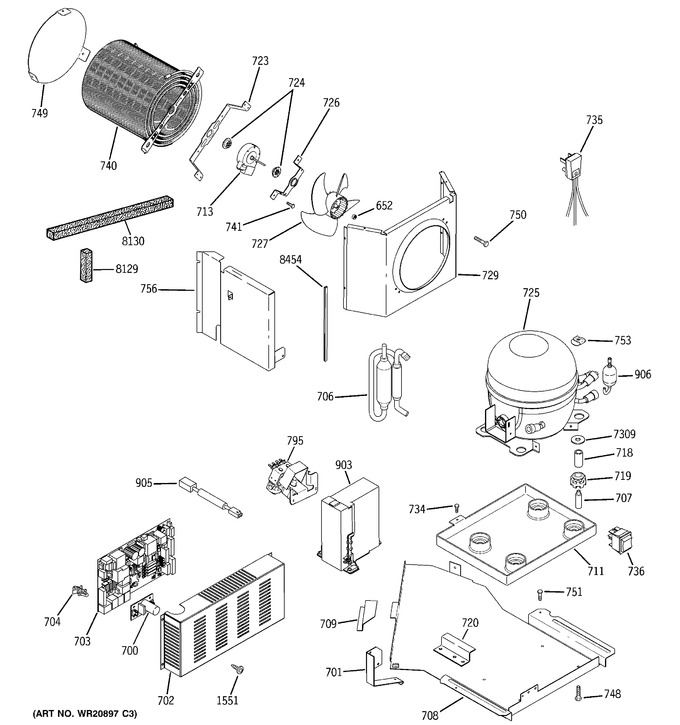

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 700 | WR23X10622 | Power Supply Pcb |
|
- | |||||
| 701 | WR02X12198 | Bracket Water Valve |
|
- | |||||
| 702 | WR02X12579 | Cover Motherboard Sxs |
|
- | |||||
| 703 | WR55X10720 | Board Asm Main Control |
|
- | |||||
| 704 | WR01X10301 | Main Board Stand Offs |
|
- | |||||
| 706 | WR74X10125 | Dryer Bifurcated Xh9 |
|
- | |||||
| 707 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 708 | WR17X10687 | Pan Evap. Draln |
|
- | |||||
| 709 | WR02X12569 | System Pan Bracket |
|
- | |||||
| 711 | WR17X12484 | Pan Vaporizer & Stud Asm |
|
- | |||||
| 713 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 718 | WR01X10305 | Steel Collar |
|
- | |||||
| 719 | WR02X13393 | Grommet |
|
- | |||||
| 720 | WR02X12767 | Retainer System Pan |
|
- | |||||
| 723 | WG03F00071 | Bracket Cond Fan (mtg) (Replaces: WR02X11863) |
|
Immediately | $ 27.00 | ||||
| 724 | WR01A00315 | Grommet Cond Fan (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 725 | WR87X10123 | Inverter Compressor Emb |
|
- | |||||
| 726 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 727 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 729 | WR17X11252 | Shroud Condenser |
|
- | |||||
| 735 | WR23X108 | Power Cord Asm. |
|
- | |||||
| 736 | WR23X10571 | Master Light Switch |
|
- | |||||
| 740 | WR01F02892 | Cond Repl Kit (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 741 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 748 | WH2X940 | Scr 8-32 Tt Fl 1/2 S |
|
- | |||||
| 749 | WR17X12350 | Cond Baffle |
|
- | |||||
| 750 | WR1X1826 | #8-18 Type Ab X 3/8 Ph P |
|
- | |||||
| 751 | WR01X10302 | Bolt 1/4-20x1.5" |
|
- | |||||
| 753 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 756 | WR17X11698 | Lh Condenser Baffle |
|
- | |||||
| 795 | WR57X10040 | Water Valve |
|
$ 71.10 | |||||
| 903 | WR55X10685 | Inverter Asm Comp Mount |
|
- | |||||
| 905 | WR23X10605 | Harness Communication |
|
- | |||||
| 906 | WG03L02186 | Accumulator (Replaces: WR86X10038) |
|
$ 76.77 | |||||
| 1551 | WR1X5645 | #10x1 Ph Sms |
|
- | |||||
| 7309 | WR01X10459 | Flat Washer 3/8x 7/8 |
|
- | |||||
| 8129 | WR14X10042 | Cond Side Baffle Foam |
|
- | |||||
| 8130 | WR14X10043 | Cond Top Baffle Foam Str |
|
- | |||||
| 8454 | WR38X10190 | Edge Trim 1.1257" |
|
- |
