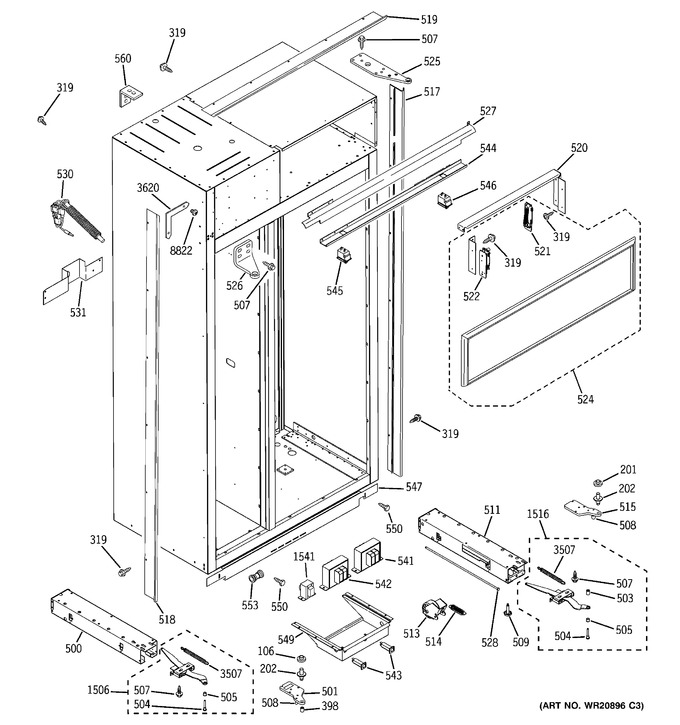

10 - Case Parts


1 - Freezer Door


2 - Sealed System & Mother Board


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
201	WG03A00011		Bushing Hinge Bottom   (Replaces: WR02X10953)				$ 73.58
202	WR01A01444		Lower Ff Adj Hinge Pin   (Replaces: WR13X10239)				$ 21.63
319	WR01X10188		Scr Trim (self Drilling)		Appelez-nous	-
398	WR01L08607		Spacer Ff Door Closure   (Replaces: WR02X11231)				$ 21.71
500	WR13X10470		Base Channel Lh		Appelez-nous	-
501	WG03L01063		Hinge Asm Case Bottom   (Replaces: WR13X10241)				$ 110.53
503	WR02X12859		Spacer		Appelez-nous	-
504	WR02X11207		Bolt Shoulder		Appelez-nous	-
505	WR02X10951		Bhng Arm Nylon Ff Dr Cl		Appelez-nous	-
507	WR01X10177		Hinge Screw Door Btm.		Appelez-nous	-
508	WR02X11209		Shear Pin		Appelez-nous	-
509	WR02X10479		Leveling Leg		Appelez-nous	-
511	WR13X10471		Base Channel Rh		Appelez-nous	-
514	WG03A00253		Spring Wheel #le022c4   (Replaces: WR02X11233)				$ 15.88
515	WR13X10242		Hinge Case Bottom		Appelez-nous	-
517	WG03L05391		Case Trim Ff Side   (Replaces: WR17X11180)			Immediately	$ 192.66
518	WR17X11181		Case Trim Fz Side		Appelez-nous	-
519	WR17X11352		Case Trim Top		Appelez-nous	-
520	WR13X10243		Hood Hinge Mount		Appelez-nous	-
521	WR13X10410		Grill Hinge Lh		Appelez-nous	-
522	WR13X10411		Grill Hinge Rh		Appelez-nous	-
524	WR74X10229		Grill & Backplate Asm Lh		Appelez-nous	-
525	WR13X10656		Top Case Hinge (0.25")		Appelez-nous	-
526	WR13X10246		Hinge Fz Upper		Appelez-nous	-
527	WR74X10102		Eyebrow Switch Cover		Appelez-nous	-
528	WR01X10186		Base Shaft		Appelez-nous	-
530	WR49X10174		Fill Tube Sxs Disp/bm		Appelez-nous	-
531	WR02X12853		Fill Tube Cover - Disp		Appelez-nous	-
541	WR62X10029		Transformer Ff Lights		Appelez-nous	-
542	WG03F00652		Transformer Fz Lights   (Replaces: WR62X10030)				$ 590.97
543	WG03F00293		Circuit Breaker   (Replaces: WR23X10269)				$ 89.11
544	WR17X11183		Plate Switch Sxs		Appelez-nous	-
545	WR01L07654		Switch Light Fz   (Replaces: WR23X427)				$ 30.18
546	WR23X475		Rocker Switch 200-watt		Appelez-nous	-
547	WR74X10189		Toe Kick		Appelez-nous	-
549	WR17X12060		Transformer Tray		Appelez-nous	-
550	WG03A00431		Screw, Toekick   (Replaces: WR01X10370)				$ 4.20
553	WG02F11800		Union 5/16" X 1/4"   (Replaces: WR02X10444)			Immediately	$ 93.58
560	WR01X10825		Bracket Anti-tip		Appelez-nous	-
1506	WR02X11208		Link Auctuator Fz		Appelez-nous	-
1516	WR02X11211		Link Aucator Ff		Appelez-nous	-
1541	WG02F11798		Transformer   (Replaces: WR62X10070)				$ 165.31
3507	WG03A00042		Spring Closure   (Replaces: WR02X11745)				$ 31.76
3620	WR02X11335		Trim Corner Key		Appelez-nous	-
8822	WR01X10326		#6-32 X 3/16 Mach Scr.		Appelez-nous	-
	WR01F02256		Motor Evap Dc			Immediately	$ 139.84
	WG03F07361		Pan Drain Asm   (Replaces: WR01L08090)				$ 369.94
	WG03F00433		Motor Dc Cond Fan			Immediately	$ 106.28
	WG03F04062		Board Asm Main Control				$ 433.40
	WG03L05072		Grill Asm Pro				$ 345.73
	WR01F01730		Sensor Temp Ff			Immediately	$ 16.29
