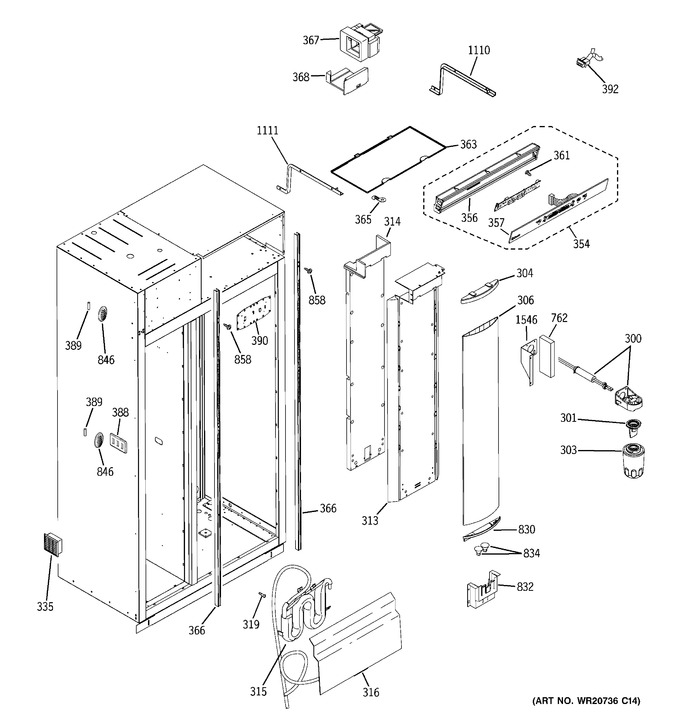

10 - Case Parts


1 - Freezer Door


2 - Sealed System & Mother Board


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WR02X11448		Filter Mnt & Tube Asm		Appelez-nous	-
301	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
303	PMMWF		Filter Canister   (Replaces: MWF)			Immediately	$ 81.88
304	WR17X11174		End Cap Light Column Top		Appelez-nous	-
306	WR17X12357		Light Column Sxs Ff/fz		Appelez-nous	-
313	WR17X11175		Air Tower Ff		Appelez-nous	-
314	WR02X11197		Foam Insert Air Tower		Appelez-nous	-
315	WG03F00679		Water Tank Asm   (Replaces: WR17X11176)				$ 180.17
316	WR74X10101		Cover Water Tank(plastic		Appelez-nous	-
319	WR01X10188		Scr Trim (self Drilling)		Appelez-nous	-
335	WR02X11199		Qc Inlet Duct Fz		Appelez-nous	-
354	WR55X10916		Hmi Control Asm Disp 48'		Appelez-nous	-
356	WR31X10022		Temp Control Housing		Appelez-nous	-
357	WR55X10829		Membrane Sxs Disp		Appelez-nous	-
361	WR02X11200		4-40 X 1/4 Ph Sms		Appelez-nous	-
363	WR02X11201		Ceiling Light Shield 48"		Appelez-nous	-
365	WR02X11203		Latch Light Shield		Appelez-nous	-
366	WR17X11179		Ff Shelf Track		Appelez-nous	-
367	WG03A00020		Damper Asm Ff   (Replaces: WR60X10085)				$ 240.88
368	WR02X11205		Foam Duct		Appelez-nous	-
388	WR02X12839		Grille Sensor		Appelez-nous	-
389	WR55X10030		Sensor Temperature		Appelez-nous	-
392	WR23X10607		Harness Hmi Ff Sxs		Appelez-nous	-
762	WR14X10296		Foam Strip Front		Appelez-nous	-
830	WR17X11201		Endcap Light Column Btm		Appelez-nous	-
832	WR02X12947		Housing Bulb		Appelez-nous	-
834	WR02X11183		Halogen Bulb Light Colum		Appelez-nous	-
846	WR01L04066		Grille Sensor   (Replaces: WR02X10647)				$ 3.97
858	WR01X10051		Screw Shelf Track		Appelez-nous	-
1110	WR01X10927		Trim Ceiling Bracket Rh		Appelez-nous	-
1111	WR01X10928		Trim Ceiling Bracket Lh		Appelez-nous	-
1546	WR02X12828		Water Filter Bracket		Appelez-nous	-
