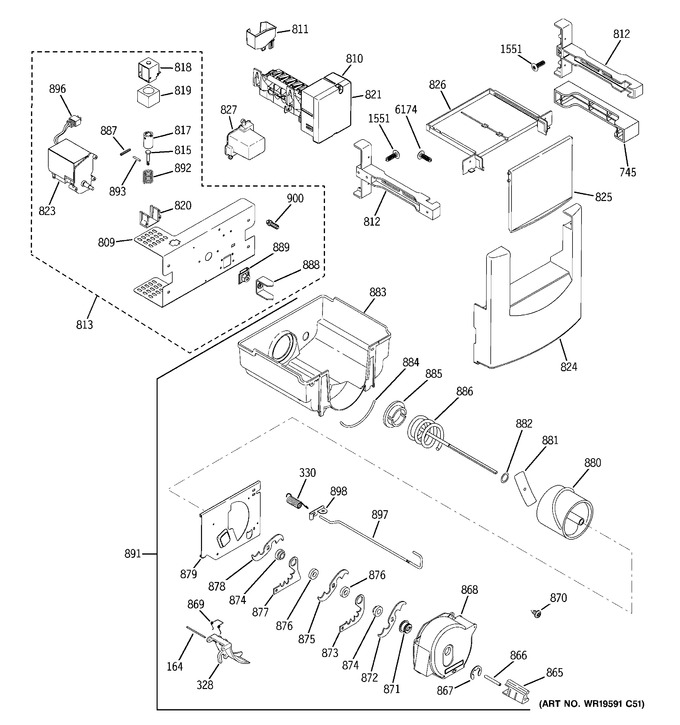

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 164 | WR2X4143 | Pin Deflector Disp |
|
- | |||||
| 328 | WR17X12794 | Deflector Ice Disp |
|
- | |||||
| 330 | WR02X13352 | Spring Deflector |
|
- | |||||
| 745 | WR17X11190 | Spacer Fz Shelf 48 |
|
- | |||||
| 809 | WR17X12909 | Cover Auger Motor |
|
- | |||||
| 810 | IM6D | Kit Rplcmt Wr30x10093 (Replaces: WR30X10093) |
|
Immediately | $ 330.86 | ||||
| 811 | WR01L01185 | Cup Fill Im (Replaces: WR29X10064) |
|
$ 10.52 | |||||
| 812 | WR72X10103 | Bucket Slide |
|
- | |||||
| 813 | WR17X12539 | Cover Mtr Solenoid 48 |
|
- | |||||
| 815 | WR17X12354 | Plunger Solenoid |
|
- | |||||
| 817 | WR17X12355 | Collar Solenoid Disp. |
|
- | |||||
| 818 | WR01F00328 | Solenoid & Arm Asm (Replaces: WR62X58) |
|
$ 151.81 | |||||
| 819 | WR17X12356 | Shroud Solenoid |
|
- | |||||
| 820 | WR2X7309 | Saddle Solenoid |
|
- | |||||
| 821 | WR29X10082 | Cover Icemaker |
|
- | |||||
| 823 | WR60X10262 | Motor Crusher Disp |
|
- | |||||
| 824 | WR17X11198 | Ice Bin Frt |
|
- | |||||
| 825 | WR17X12547 | Door Ice Bin |
|
- | |||||
| 826 | WR71X10420 | Ice Bin Door Track |
|
- | |||||
| 827 | WR02X13423 | Cover Auger Motor |
|
- | |||||
| 865 | WR02X13319 | Blade Rest Disp |
|
- | |||||
| 866 | WR2X4141 | Pin Spiral |
|
- | |||||
| 867 | WR1X1367 | Retainer Ring E |
|
- | |||||
| 868 | WR17X12821 | Housing Crusher Disp |
|
- | |||||
| 869 | WR2X4561 | Spring Ice Deflector |
|
- | |||||
| 870 | WZ04X0230 | Scr 8-15 A Pa 3/8 Ss |
|
- | |||||
| 871 | WR01X10925 | Nut Auger Frt Disp |
|
- | |||||
| 872 | WR17X1361 | Blades Moving Display |
|
- | |||||
| 873 | WR17X1009 | Blade Stationary Display |
|
- | |||||
| 874 | WR2X4139 | Spacer Crusher Middle |
|
- | |||||
| 875 | WR17X1362 | Blades Moving Display |
|
- | |||||
| 876 | WR2X4138 | Spacer Crusher Stationar |
|
- | |||||
| 877 | WR17X2058 | Blade Stationary Display |
|
- | |||||
| 878 | WR17X1363 | Blades Moving Display |
|
- | |||||
| 879 | WR17X12822 | Plate Front Disp |
|
- | |||||
| 880 | WR17X4207 | Helix Front Display (1 P |
|
- | |||||
| 881 | WR02X13320 | Blade In Disp |
|
- | |||||
| 882 | WR01A01060 | Washer (Replaces: WR1X1366) |
|
$ 4.20 | |||||
| 883 | WR30X322 | Bucket Ice Disp |
|
- | |||||
| 884 | WR2X7905 | Bucket Seal Disp |
|
- | |||||
| 885 | WR02X13321 | Drive Cup |
|
- | |||||
| 886 | WR17X10044 | Auger Helix Display |
|
- | |||||
| 887 | WR01F00328 | Pin Spiral (Replaces: WR2X4259) |
|
$ 151.81 | |||||
| 888 | WR02X11937 | Drive Auger Dispenser |
|
- | |||||
| 889 | WR1X1547 | Nut J |
|
- | |||||
| 891 | WR17X11410 | Kit Bucket & Auger Disp |
|
- | |||||
| 892 | WG03A00097 | Spring Solenoid Linkage (Replaces: WR2X4258) |
|
$ 79.62 | |||||
| 893 | WR01F00328 | Pin Spiral (Replaces: WR2X4257) |
|
$ 151.81 | |||||
| 896 | WR23X10682 | Harness Auger |
|
- | |||||
| 897 | WR17X11411 | Wire Actuator Disp |
|
- | |||||
| 898 | WR02X13322 | Retainer Actuator Wire |
|
- | |||||
| 900 | WR02X12576 | Support Twist 9119-01-99 |
|
- | |||||
| 1551 | WG04A01239 | #10x1 Ph Sms (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 6174 | WR01X10449 | Screw 6x1/2 Pan Phil H/l |
|
- |
