Diagram for 9 - Quick Chill
9 - Quick Chill


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
320 WR32X10689 Qc Mullion Asm 48 Appelez-nous -
327 WR32X10823 Pan Quick Chill Asm Appelez-nous -
329 WR71X10956 Veg Wire Frame Modified Appelez-nous -
334 WR2X8472 Tube Appelez-nous -
344 WR31X10070 Air Handler Asm Qc Kit Appelez-nous -
346 WR60X10319 Seal Qc Damper Appelez-nous -
347 WR60X10292 Fan Chill Appelez-nous -
348 WG03F05149 Heater Thaw   (Replaces: WR51X10081) Special Order $ 40.23

351 WR01X10298 Wire Mesh Qc Hsg Appelez-nous -
369 WR01L04900 Damper Assy Supply   (Replaces: WR60X10062) Special Order $ 140.69

380 WR02X13054 Cover Water Lines Appelez-nous -
389 WR55X10030 Sensor Temperature Appelez-nous -
394 WR23X10692 Harness Qc Sxs Appelez-nous -
894 WR50X10092 Thermostat Light Appelez-nous -
4107 WG03L00743 Slide Outer   (Replaces: WR72X10366) Special Order $ 61.96


    View Diagram in Separate Window     Print Icon   Print Part List

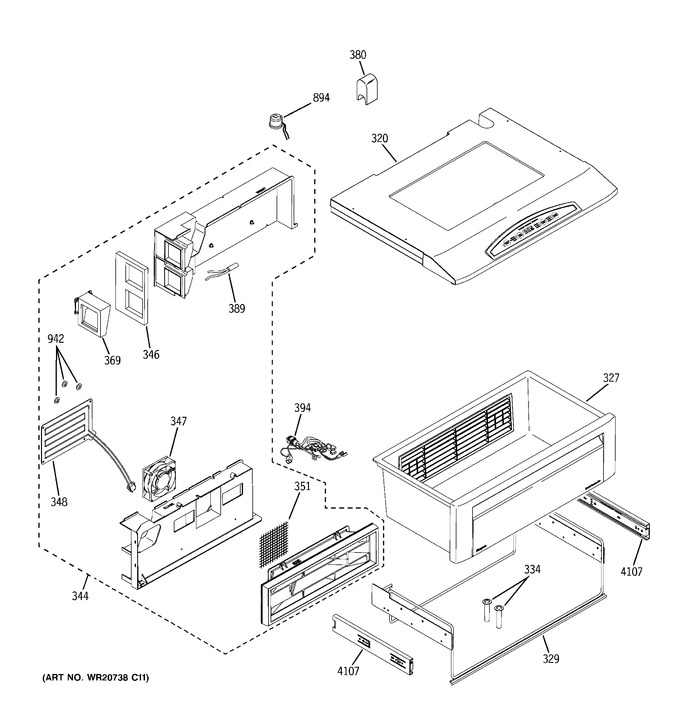

Diagram for ZISP480DXBSS
