SELECT A DIAGRAM

10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill

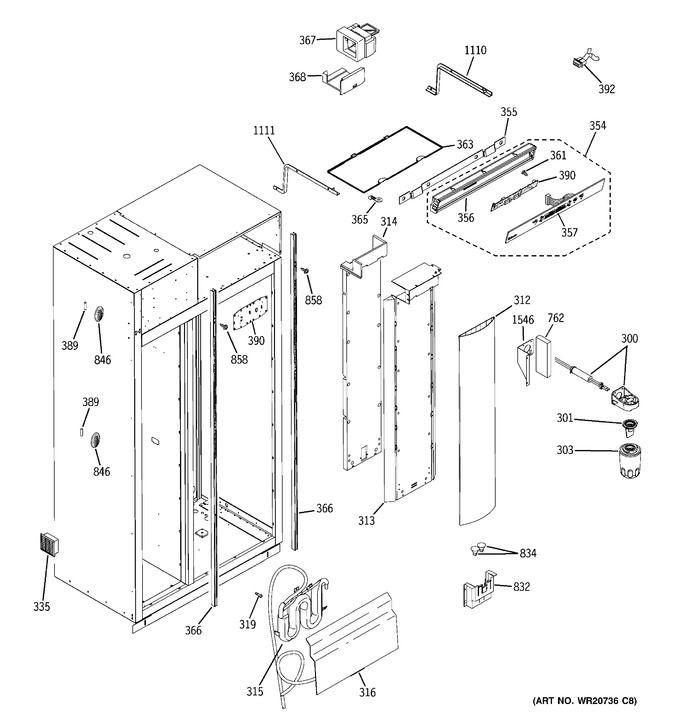

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WR02X13046		Water Filter & Head Asm		Appelez-nous	-
301	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
303	PMMWF		Water Filt Ref Cyst   (Replaces: MWF)			Immediately	$ 81.88
312	WR17X12541		Shield Light Column 48		Appelez-nous	-
313	WR17X12551		Air Tower Ff 42/48		Appelez-nous	-
314	WR02X13141		Foam Airtower Asm		Appelez-nous	-
315	WG03F03757		Water Tank Asm   (Replaces: WR17X12702)				$ 60.18
316	WR02X13142		Cover Water Tank		Appelez-nous	-
335	WR02X11199		Qc Inlet Duct Fz		Appelez-nous	-
354	WR55X10853		Hmi Asm 48 Disp		Appelez-nous	-
355	WR01X10841		Hmi Tab Holder 48/42		Appelez-nous	-
356	WR74X10258		Housing Control		Appelez-nous	-
357	WR55X10829		Membrane Sxs Disp		Appelez-nous	-
361	WR02X11200		4-40 X 1/4 Ph Sms		Appelez-nous	-
363	WR02X12852		Ceiling Light Shield		Appelez-nous	-
365	WR02X11203		Latch Light Shield		Appelez-nous	-
366	WR17X12524		Track Ff Shelf		Appelez-nous	-
367	WR02X12861		Damper Foam Asm 48		Appelez-nous	-
368	WG03A00020		Ff Damper Repair   (Replaces: WR49X10107)				$ 240.88
389	WR55X10030		Sensor Temperature		Appelez-nous	-
390	WR55X11007		Board Led Light Asm		Appelez-nous	-
762	WR14X10296		Foam Strip Front		Appelez-nous	-
832	WR17X12545		Bulb Housing Asm 48fz		Appelez-nous	-
834	WR02X11183		Halogen Bulb Light Colum		Appelez-nous	-
846	WR01L04066		Grille Sensor   (Replaces: WR02X10647)				$ 3.97
858	WR01X10840		Scr 10-24 F Pnp 1.25s		Appelez-nous	-
1110	WR01X10927		Trim Ceiling Bracket Rh		Appelez-nous	-
1111	WR01X10928		Trim Ceiling Bracket Lh		Appelez-nous	-
1546	WR02X12828		Water Filter Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
